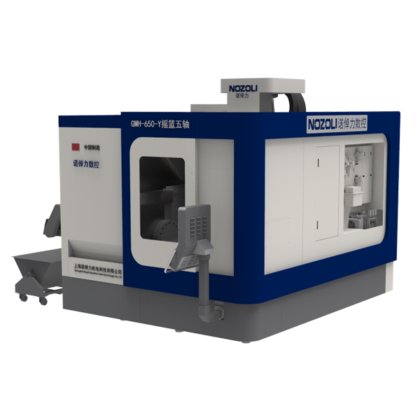

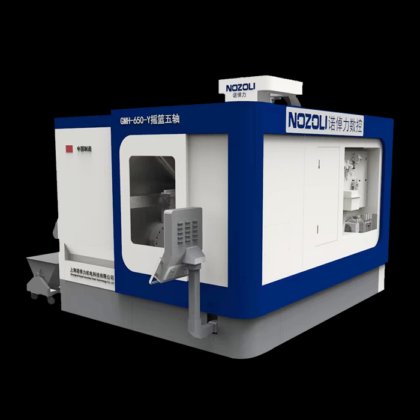

新 摇篮五轴加工中心 在 上海市, 中国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。

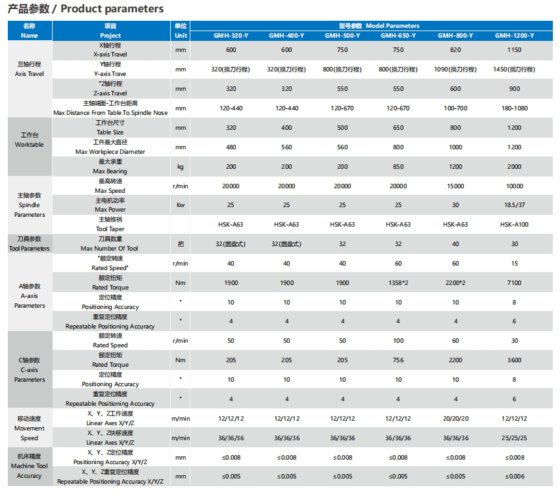

规格参数
描述

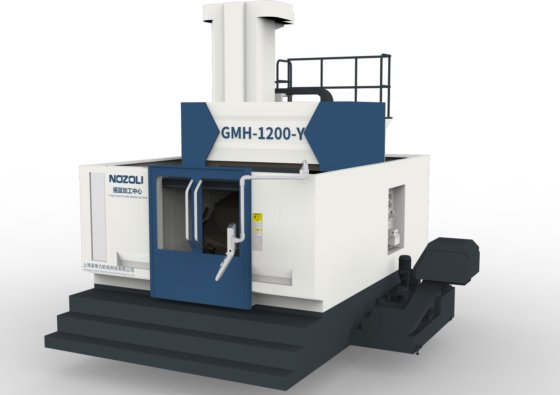

总体布局为桥架式龙门框架结构，底座及桥架立柱固定。
横梁沿立柱导轨做 Y 向运动，横梁上十字滑板做 × 向运动，主轴箱沿十字滑板垂向导轨做 Z 向运动，底座床身前端配置 AC 两轴数控摇篮工作转
台，实现五轴加工功能。
整体进行热对称设计，主轴采用主动的循环水冷形式，可确保加工时的重负荷纵切能力，并具有优越的热变形对称平衡性能。
自研高精密摇篮转台，选取永磁力矩电机驱动技术，保证高精度。

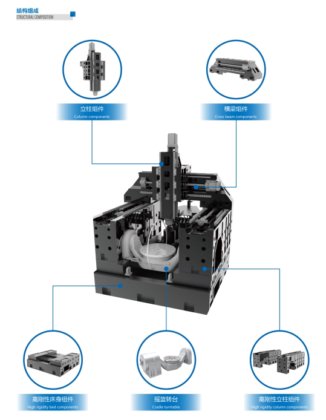

**优化的高架龙门式立柱为一体式结构设计，主要部件全部布置大量加强筋，具有极高的静态、动态刚度、减震性能及稳定的精度保持性，机床整
体进行温度平衡设计。
The overall layout is a bridge gantry frame structure, and the base and bridge column are fixed.
The beam moves in the Y direction along the column guide rail, the cross skateboard on the beam does X-direction movement, the spindle box
does Z movement along the vertical guide rail of the cross skateboard, and the front end of the base bed is equipped with AC two-axis CNC
cradle working turntable to realize the five-axis machining function.
The overall thermal symmetry design, the spindle adopts an active circulating water cooling form, which ensures the heavy-duty longitudinal
cutting capacity during machining and has superior thermal deformation symmetrical balance performance.
