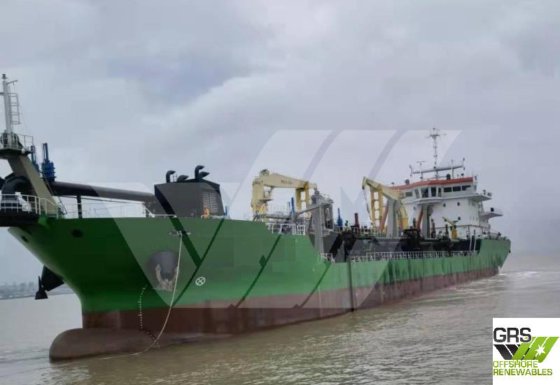

二手 出售128米吸泥船 在 汉堡, 汉堡州, 德国

Principal Dimensions and Characteristics
Length of all: 128.00 m
Beam: 22.00 m
Molded Depth: 9.00 m
Design Draft:7.80 m
Hopper capacity:9,000 m3
Loading time:60 min.
Deadweight:11,770 t
Design Speed: 11.50 kn
Dredging depth:35 m
Suction diameter:850 mm
Discharge diameter:850 mm
Discharge distance:1,500 m
Discharge by bow connection:120 min.
Propeller Engine
Maker:Guangzhou Diesel Power
Type:8G32
Power/speed:3552KW 600r/min
Q'ty:2 sets
Diesel generating set
Maker:CNPC Jichai Diesel Engine
Type:CCFJ550Z-Y
Engine Rate power:750 kw
Alternator power:580 KW
Rate speed:1,000 r/min
Q'ty:3 sets
Emergency generator
Maker:Weifang Diesel Engine
Engine rate power:138 kw
Alternator power:120 kw
Rate speed:1500r/min
Q'ty:1 set
Inboard pump
Maker:Guangzhou Diesel Power
Type:8320ZCd-8
Power:2206 KW
Rotation:525 rpm
Q'ty:2
Water flow:10,000
Head:23m
Rotation:365rpm
