二手 外径 2000 毫米螺旋焊接管磨机 在 上海市, 中国
二手
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
描述

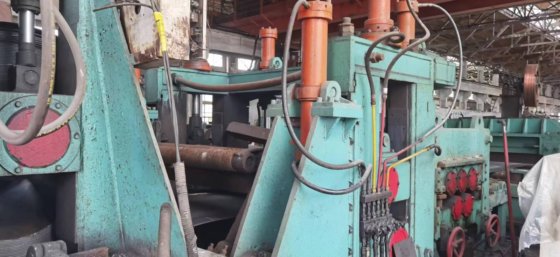

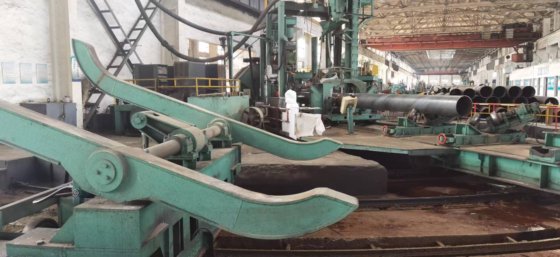

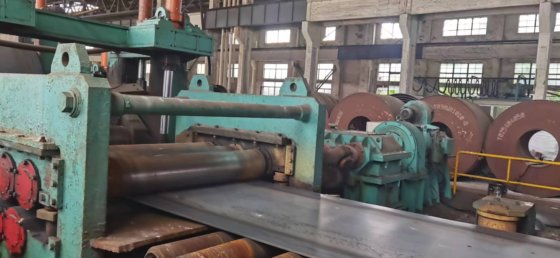

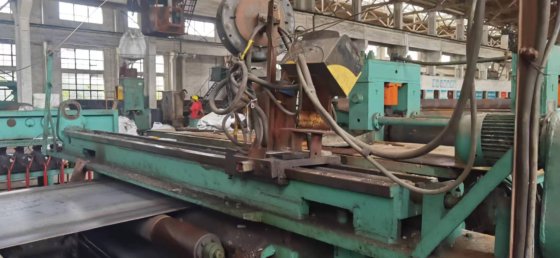

OD2000mm used spiral welding tube mill Machine
wallthickness: 6-- 20mm, tube length: max.12m
material:Q235, API pipes, X 70 max wall thickness: 14 mm
machineis in foundation
stoppedrunning in 20/08/2024
scopeof supply
2.Coil opener
3.5- roll leveler, DC motor power: 55kw ×1pcs
Pinch roll 2
4.Vertical roll
5.shear welder table
pinchingmachine x2, 15kw AC motor
2 loopsare to make mill run continuously.
Edgetrimming machine x2
Blade diameter: 600mm, edge milling width:7-8mm
Finishingedge miller 15kw x2
7. guiding device
8. delivery machine, AC motor power: 55kw×1pcs, 980rpm
9. forming machine, 3 booms
10. gantry frame
11. tube cutter
12. run out conveyor
13.front base
14. rear base
15.electric and hydraulic system
16.OD and ID welding device (does not include welders )
API used spiral mill (OD 508--2000mm),
end facing (OD508- 1800mm),
thickness: max 20mm, material: Q 235
End facing at the same time (both sides)
hydro tester (OD508--1600mm) pushingpower: 1200 t
