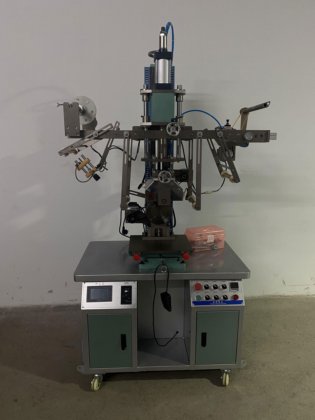

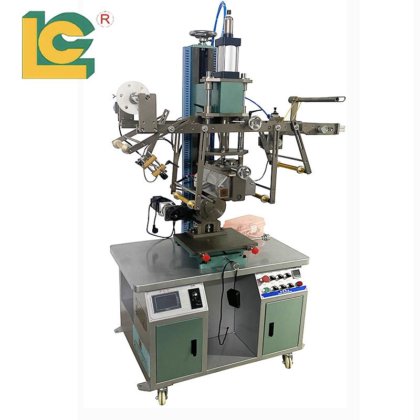

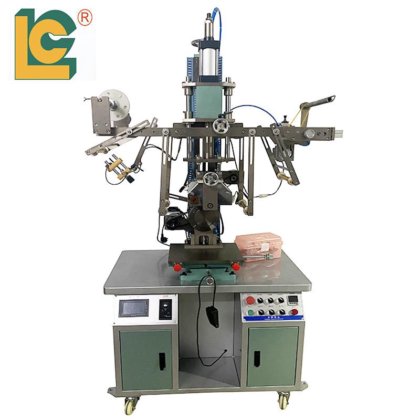

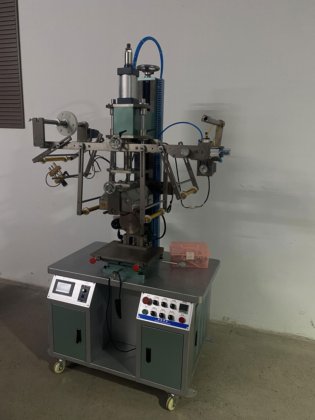

新 用于电饭煲的双伺服电机 PLC 热传导机 在 东莞市, 广东省, 中国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- 品牌
- 辽宁省
- 单价
- US $ 13500 / 套
- 最低订购量
- 1 set
- 价格条款
- FOB 深圳，中华人民共和国
- 包装
- 木箱
- 交付时间
- 定金后18天
- 标准证书
- 剑桥大学
- 总重量
- 500kg
- 1.model
- LC-TH-400RD
- 2.roller size
- 直径 38*Ø100*180MM
- 3.heat transfer length
- 180MM
- 4.temperature range
- 正常 - 400℃
- 5.hot stamping product height
- 290MM
- 6.stroke
- 80MM
- 7.distance from center
- 200MM
- 8.max stamping pressure
- 80kg
- 9.air pressure
- 0.6Mpa
- 10.electric heating power
- 2500W
- 11.total power
- 4000W
- 12.voltage
- 220V 50HZ
- 13.weight
- 500KG
- 14.mechanical size
- 1350*950*2000MM
- 分类
- 电动机 在 中国
- 子类别
- 印刷
- 子类别 2
- 热转印机
- 产品编号
- 96540940
描述
Double Servo motor control fixture, can be in any position to start, stop, jump, PLC touch screen control, touch screen can control the servo motor to adjust the rotation of the fixture
Features:
1 An electronic controller IC integrated multifunction procedures to ensure that the machine to roll stamping , round surface, such as a multi-purpose pressure round running.
2 Gilding press elbow mechanism design, less compressed air consumption, strong steady pressure.
3 Stamping pressure, temperature, hot pressing time is adjustable.
4 Work table can be customized to move back and forth automatically, it is easy tofacilitate safe and fast operation.
5 Work table can swing around a center of rotation of the workpiece for rolling without slipping.
6 automatic document feeder, collection, and adjustable. Taiwan OUTAI motor, and it can be customized for Two-speed motor and high precision positioning
7 Equipped with photocell (Taiwan FOTEK electric eye, 250 times per second high-precision motion), which try to locate the point of thermal transfer paper with precise tracking control.
8 The height of lettering head is adjustable, stamping 300MM larger workpieces. Germany BOSCH can be customized cylinder (super seal wear).Using Taiwan Mindman precise control solenoid valve, German NASS coil stable and durable.
9 The work table level shuttle is using the wind to push oil conversion device, the working mechanism drives the workpiece rotate smoothly stamping, stamping stable quality.
10 The machine can be customized according to customer requirements horizontal, hydraulic, grinding cross table, two-speed winders, table plus rodless cylinder automatic access, roll-to-roll hot stamping, stamping irregular shaped product development and so on.
11 Equipped with emergency stop safety devices to protect the safety of the operator.
Specification
15.One set of fixture for the rice cooker
