新 吹瓶灌装旋盖多头纯净水单体组合机 在 苏州市, 江苏省, 中国

The machine is mainly used for the packaging of PET bottle drinking water, including the function of blowing, washing, filling, and capping.

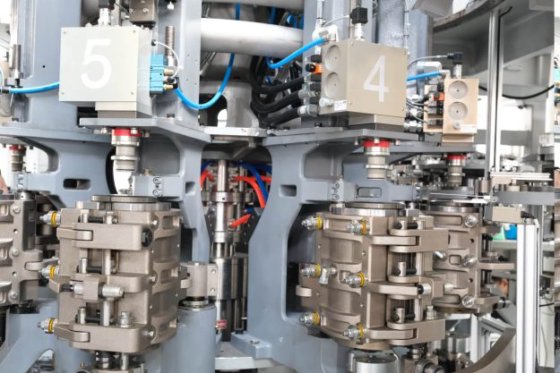

1.Blowing unit
Special manipulator delivers heated preforms to moulds along certain cam curve. After stretch pre-blow, the preform will be blown to bottles by connecting high pressure compressed air. Special manipulator sends the finished bottle out along certain cam curve.
2. Filling unit
The blow-made bottles are transported to filler via starwheel. After entering filler, the bottle is held by gripper of lifting cylinder and realizes up and down under effect of cam. The filler adopts gravity filling way. Bottle mouth rises to open filling valves and start filling. While product rises and plugs up air return hole, the filling will be finished. After filling, bottle mouth moves down and leaves the filling valve.
