新 SBM-L G1S2 EVO 在 巴特武尔察赫, 巴登-符腾堡州, 德国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Passage width max.
- 1000 / 1500 / 2000 mm
- Machinable sheet thickness
- 0.5 - 60 mm
- Payload
- 300 kg/lfm
- Voltage
- 400 V / 50 Hz
- Net shape
- 3~ PEN / 3~ PE+N
- Nominal current
- 43.7 A / 43.7 A / 43.7 A
- Rated capacity
- 20.4 kW / 20.4 kW / 20.4 kW
- Protection type
- IP 42
- Feed stepless
- 0-4 m/min.
- Setting sheet thickness
- electrical
- Setting tools
- electrical
- Weight approx.
- 2500 / 2800 /3200 kg
- Dimensions (w/t/h) approx.
- 2890/1480/1790mm3390/1480/1790mm3890/1480/1790mm
- 子类别
- Applications
- 产品编号
- 96277660
描述
Select your country below so we can show you the correct information for your location.

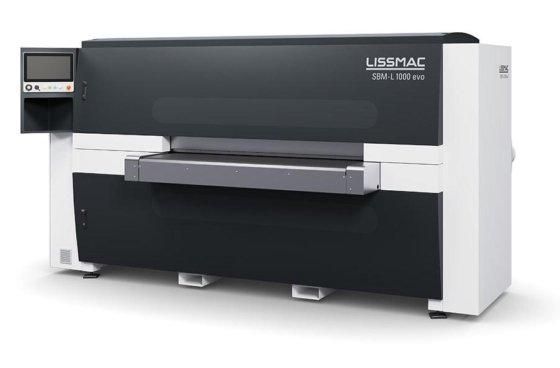

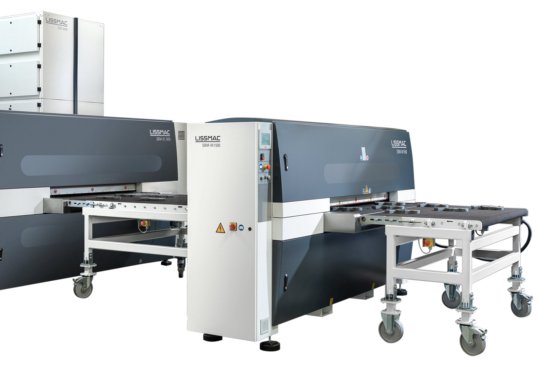

Double-sided deburring and edge rounding of punched, laser and plasma blanks
More than 60% reduction in throughput time thanks to double-sided processing
Up to 70% energy savings compared to conventional grinding/deburring machines
LISA - The LISSMAC Set-Up Assist guides the operator automatically/without prior knowledge to the desired processing result

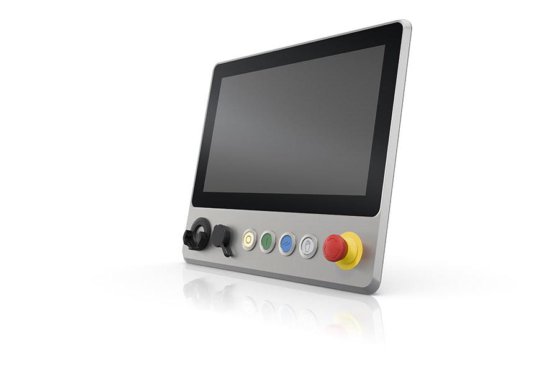

13.3" FullHD touch panel with intuitive operator guidance

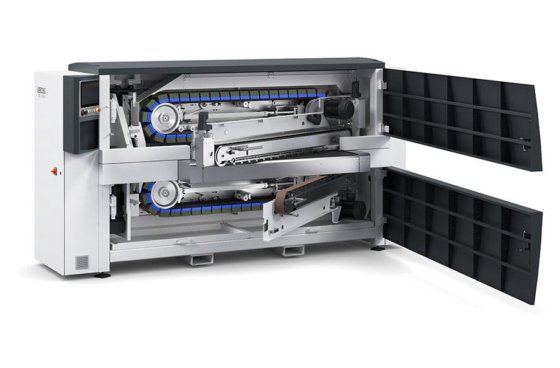

Simultaneous deburring and edge rounding of the outer and inner contours
Processing on both sides saves cost-intensive material handling (e.g. turning components) and time-consuming parts logistics
Single-sided processing possible by simply deactivating units (also for components that cannot be processed on conventional machines)
Optimum tool utilization across the entire working width thanks to the cross-machining principle
