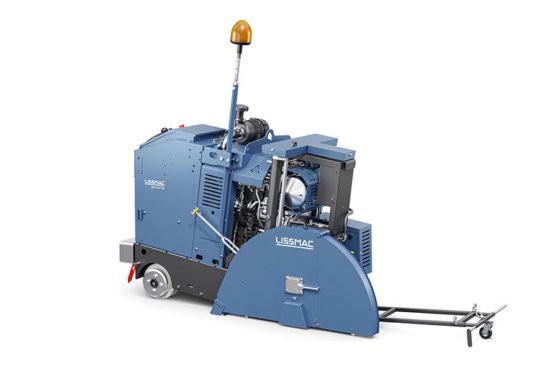

新 MULTICUT 590 在 巴特武尔察赫, 巴登-符腾堡州, 德国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Cutting depth max.
- 520 mm
- Cutting depth adjustment
- electrohydraulic stepless
- Saw blade dia. max.
- 1200 mm
- Saw blade holder
- 35 mm (6x M12 TK 120) / 25.4 mm
- Drive motor
- Perkins 3-cylinder turbo diesel
- Max. output power
- 36 kW / 49 PS
- Emission level
- EU Stage V / US EPA Tier 4 Final
- Forward cut
- electrically stepless 0 - 50 m/min
- Cutting backwards
- electrically stepless 0 - 25 m/min
- Saw blade speed saw blade shaft
- 3 variants: 1110 / 1400 / 2390 1/min
- Left/right cut
- Yes
- Dimensions (l/w/h)
- 1710 / 805 mm / 1330 mm
- Mass
- 933 kg
- 产品编号
- 96275467
描述
Select your country below so we can show you the correct information for your location.
Newly developed torsion-resistant frame in sandwich construction
Automatic feed control (always active in the background)
Feed speed is automatically regulated depending on the motor load - motor load can be set by the operator as required.
Precise electric feed motor with integrated parking brake
Electric motor enables the machine to be moved and set up without the diesel engine running
2-speed gearbox to enable the ideal operating point for cutting and traversing
Cutting depth can be preset via the display
Hydraulic steering wheel for comfortable working

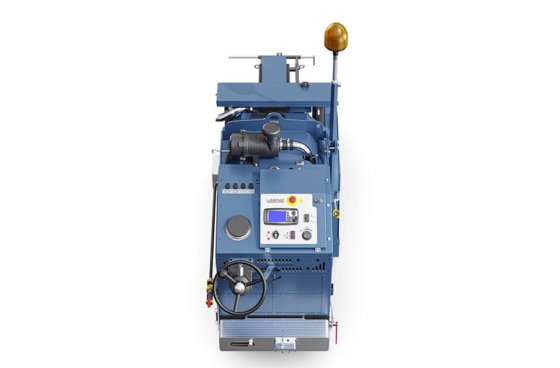

Modern control panel for clear control of all functions and display of important data - Saw blade speed display - Digital cutting depth display / desired cutting depth
Saw blade drive: neutral, synchronized or counter-rotation selectable
