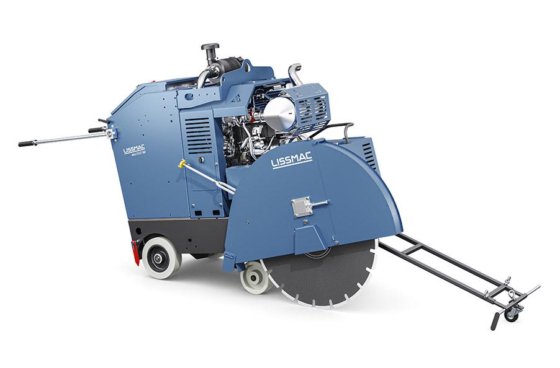

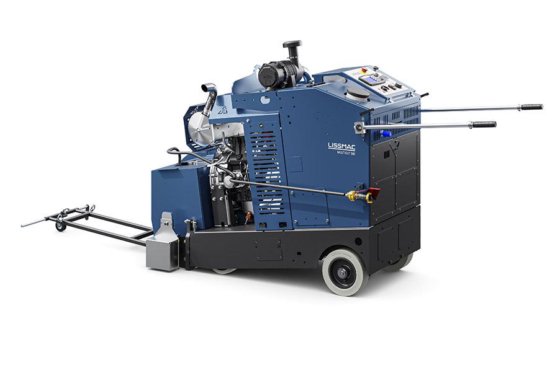

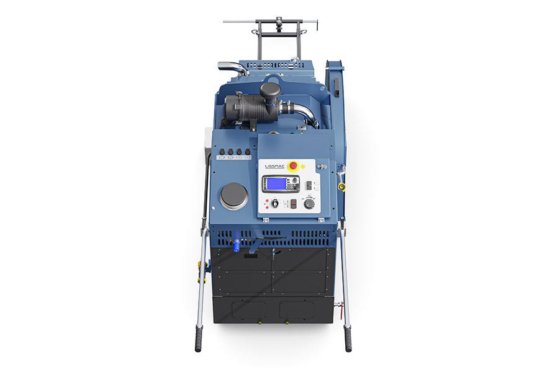

新 MULTICUT 580 在 巴特武尔察赫, 巴登-符腾堡州, 德国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Cutting depth max.
- 520 mm
- Cutting depth adjustment
- electrohydraulic stepless

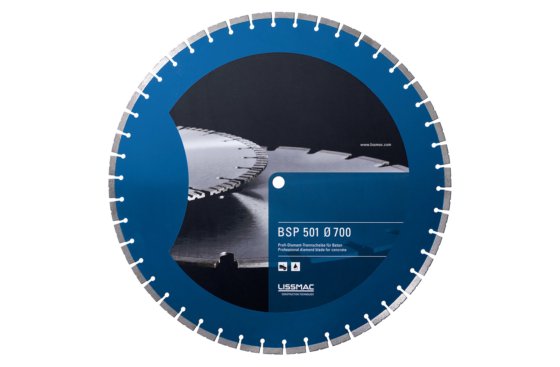

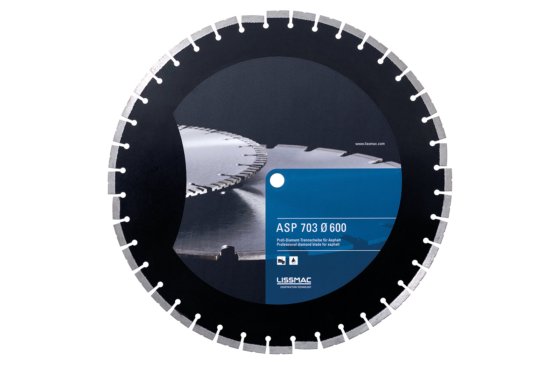

- Saw blade dia. max.
- 1200 mm
- Saw blade holder
- 35 mm (6x M12 TK 120) / 25.4 mm
- Drive motor
- Perkins 3-cylinder turbo diesel
- Max. output power
- 36 kW / 49 PS
- Emission level
- EU Stage V / US EPA Tier 4 Final
- Nominal speed ø350-500
- 2470 m/min
- Nominal speed ø600-800
- 1380 m/min
- Nominal speed ø800-1200
- 1010 m/min
- Nominal speed manual transmission
- 990 / 1420 / 2170 / 2700 1/min
- Left/right cut
- Yes
- Dimensions (l/w/h)
- 1710 / 805 mm / 1330 mm
- Mass
- 785 kg
- 产品编号
- 96275457
描述
Select your country below so we can show you the correct information for your location.
Scissor principle - optimum weight distribution for easy handling and high cutting performance
Newly developed torsion-resistant frame in sandwich construction
Automatic feed control (always active in the background)
Feed speed is automatically regulated depending on the motor load - motor load can be set by the operator as required
Precise electric feed motor with integrated parking brake
Electric motor enables the machine to be moved and set up without the diesel engine running
2-speed gearbox to enable the ideal operating point for cutting and traversing
Toe-in adjustment is made electrically via a linear motor - adjustment can be made conveniently at any time via the display
Cutting depth can be preset via the display
Automatic handle adjustment depending on the angle of inclination of the machine.
