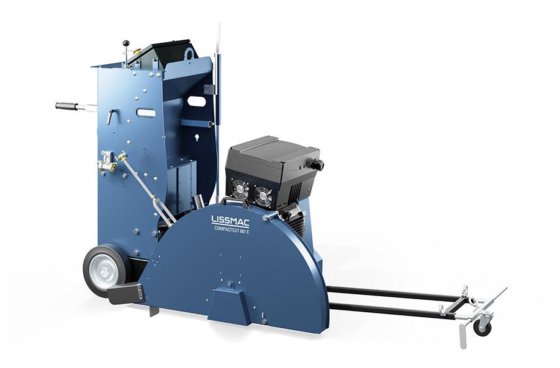

新 COMPACTCUT 701 E 在 巴特武尔察赫, 巴登-符腾堡州, 德国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Cutting depth max.
- 510 mm
- Cutting depth adjustment
- Electrohydraulic
- Saw blade dia. max.
- 1200 mm
- Saw blade holder
- 25.4 mm (6 x M8 - TK125)
- Drive motor
- electric motor
- Drive line continuous operation (s1)
- 22 kW
- Voltage
- 400 V / 50 Hz / 63 A
- Saw blade speed
- 750 1/min. I 1000 1/min. I 1600 1/min. I 2000 1/min.
- Saw motor speed
- 1470 1/min.
- Left/right cut
- Yes
- Dimensions (l/w/h)
- 1600 / 790 / 1600 mm
- Mass
- 630 kg
- 产品编号
- 96275368
描述
Select your country below so we can show you the correct information for your location.
Particularly compact design
The saw blade is lowered and raised hydraulically and steplessly, preventing damage to the saw blade
Clear and ergonomic arrangement of the operating instruments
Saw hood can be folded up at the front as standard for overcuts
Patented flush-to-wall sawing system with 800 mm wall sliding saw hood (optional) and flush-to-wall saw blade holder.
The rear impeller sits outside the saw cut. This makes it easy to re-cut kerfs.
Conversion from left-hand to right-hand cutting possible
The low center of gravity and precise weight distribution on the axles ensure stability and excellent directional stability
Infinitely variable feed system with differential
Parking brake
Cutting depth indicator
Stable H-shaped dipstick
Continuous saw blade shaft with V-belt drive
