新 13M 红外线隧道干燥机 在 东莞市, 广东省, 中国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- 品牌
- 辽宁省
- 单价
- 19320 美元/套
- 最低订购量
- 1 set
- 价格条款
- EXW,东莞,中国
- 包装
- 夹板箱
- 交付时间
- 付款确认后25天
- 标准证书
- 剑桥大学
- 应用区
- 瓶子、玻璃瓶、葡萄酒瓶等
- 物品
- 描述
- 隧道式玻璃瓶虹吸干燥机
- 1.conveyor size: 13000*600mm(L*W) 2.machine size: 13100*1050*1880mm 3.Tunnel height of 600mm 4.belt height from floor of 600mm 5.Height of entrance:600mm 6.Total power:18KW 7.working power: AC 380V 50HZ 8.temperature adjustment: 0-200 Centigrade 9.constant temperature will be 2o C more or less 10.temperature resolution: 1o C 11.Belt speed adjustment: 0-50CM/MIN 12.Gross weight: 1400 KG
- 子类别
- 印刷
- 子类别 2
- 红外热烘干隧道
- 产品编号
- 95718090
描述

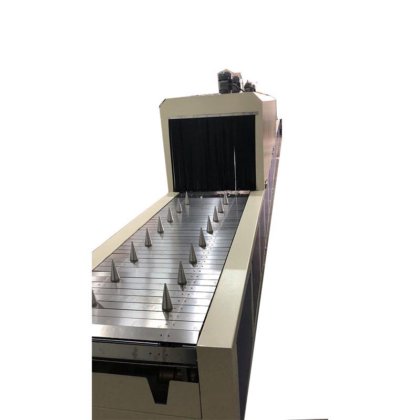

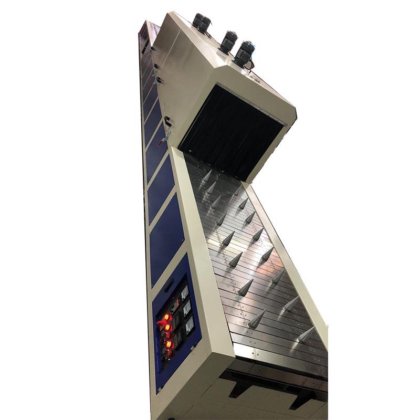

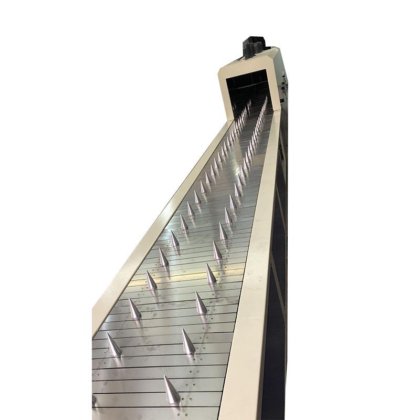

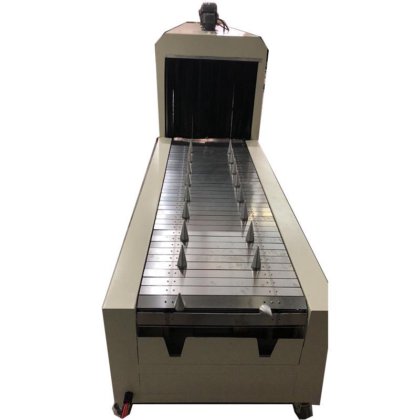

Glass bottles IR drying machine tunnel
This IR Drying tunnel use for glass bottles,plastic bottles,wine glass bottles, ect.
The conveyor belt is 13000X600mm wide.The inlet length is 6000mm. The outlet is 2000mm.Drying area 5000mm.Hight of the inlet:600mm,width:600mm
Welding process of 4mm channel steel for mechanical outer frame.
Specially used for drying all kinds of printing solvent thermosetting ink plastic bottles, glass bottles
IR Drying tunnel for variety of screen printing, pad printing and spraying thermosetting ink processing such as heat press, electric products, ( silicon, electric membrane film key press, window glass. )
This conveyor dryer is widely used in the drying of screen printing industry,is especially suitable for solidifying heat-set and special type of printing ink.This tunnel dryerenables the production of printed products with good colorfastness, high flexibility and high gloss.
Features:
1. Intelligent temperature control system,easy operation,can control of temperature deviation effective.
2.adopt hot circulating system,save energy effectivly.
3.
Stainless steel chain wrench with rotary taper
, customers' designs are welcome
4.Far infrared heating pipe is especially suitable for solidifying heat-set and special type of printing ink.
5.Adjustable belt speed and tunnel temperature controls.
Services offered by seller
该卖家提供新机器
该卖方可以帮助您计划和执行整个项目
该卖家提供备件
