新 红外热烘干隧道 在 东莞市, 广东省, 中国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- 品牌
- 辽宁省
- 单价
- 8000 美元/台
- 最低订购量
- 1个单位
- 价格条款
- EXW,东莞,中国
- 包装
- 胶合板箱
- 交付时间
- 支付后15天
- 标准证书
- ISO-9001
- 应用区
- 干燥塑料制品、金属油墨。喷涂溶剂油墨、IR干燥炉
- 1．
- 传送带长度：7000
- 2
- 传送带宽度：600 毫米
- 3
- 机器尺寸：（长）7100x（宽）1050x（高）1260 毫米
- 4
- 工作电源交流 380V 50HZ
- 5
- 温度调节：0-200 摄氏度
- 6
- 恒温或多或少为 2º C
- 7
- 温度分辨率：1º C
- 8
- 皮带速度调节：0-10M/MIN.入口高度：120 毫米
- 9
- 包装尺寸：8000*1200*1300 包装重量：800公斤
- 子类别
- 印刷
- 子类别 2
- 红外热烘干隧道
- 产品编号
- 95718077
描述
Description:

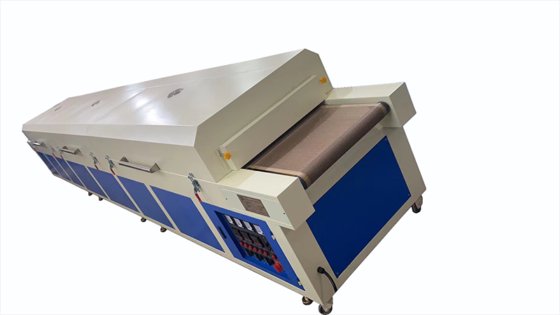

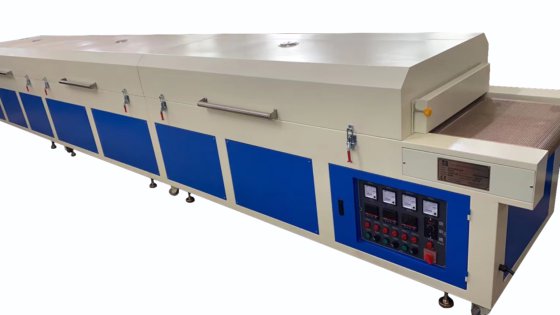

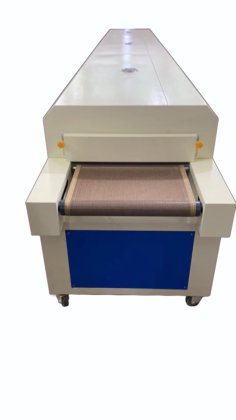

IR Drying tunnel for variety of screen printing, pad printing and spraying thermosetting ink processing such as heat press, electric products, ( silicon, electric membrane film key press, window glass. )
This conveyor dryer is widely used in the drying of screen printing industry,is especially suitable for solidifying heat-set and special type of printing ink.This tunnel dryerenables the production of printed products with good colorfastness, high flexibility and high gloss.
Features:
1.
The machine has memory function to save the set speed parameters of each product
2.

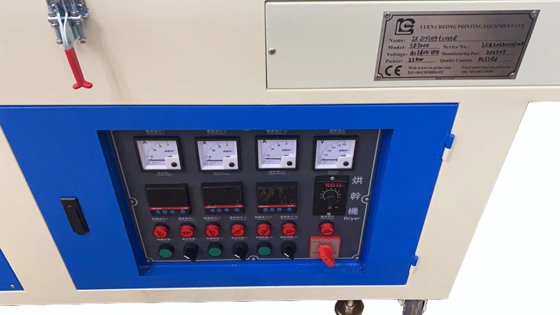

The machine is equipped with a touch screen, speed control and all other functions can be operated directly from the touch screen
3.
Emergency switch required in 2 corners, both in delivery and feeding side,greatly improve the safety, to ensure the safety of workers
4. Intelligent temperature control system,easy operation,can control of temperature deviation effective.
5. adopt hot circulating system,save energy effectivly.
6. Teflon screen belt , customers' designs are welcome
7.Far infrared heating pipe is especially suitable
for solidifying heat-set and special type of printing ink.
8.Adjustable belt speed and tunnel temperature controls.
Parameters:
