新 红外热烘干隧道 在 东莞市, 广东省, 中国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- 品牌
- 辽宁省
- 最低订购量
- 1个单位
- 价格条款
- FOB 深圳，中华人民共和国
- 包装
- 木箱
- 交付时间
- 支付后15天
- 标准证书
- 剑桥大学
- 总重量
- 180kg
- 1.conveyor length
- 2000mm
- 2.conveyor width
- 400mm
- 3.entrance length
- 400mm
- 4.exit length
- 400mm
- 5.effective drying length
- 1200mm
- 6.belt speed adjustment
- 0-10M/MIN
- 7.working power
- 交流 380V 50HZ
- 8.temperature adjustment
- 0-200 摄氏度
- 9.total power
- 1KW
- 11.temperature resolution
- 1º C
- 13.gross weight
- 180 公斤
- 子类别
- 印刷
- 子类别 2
- 红外热烘干隧道
- 产品编号
- 95718072
描述
Description:

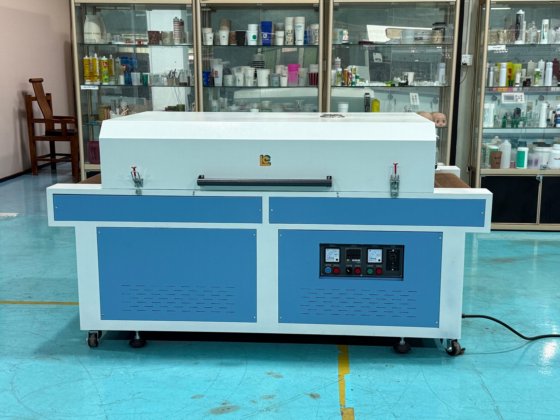

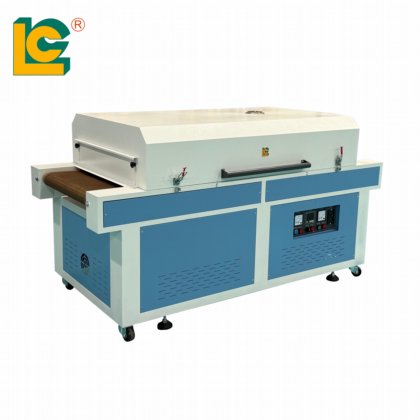

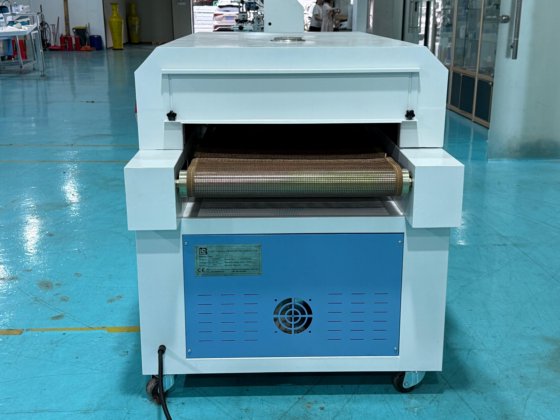

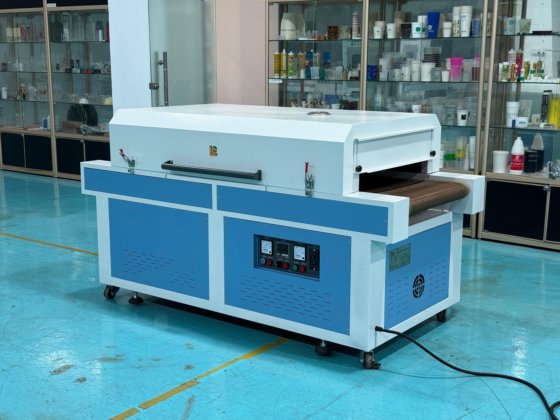

IR Drying tunnel for variety of screen printing, pad printing and spraying thermosetting ink processing such as heat press, electric products, ( silicon, electric membrane film key press, window glass. )
This conveyor dryer is widely used in the drying of screen printing industry,is especially suitable for solidifying heat-set and special type of printing ink.This tunnel dryerenables the production of printed products with good colorfastness, high flexibility and high gloss.
Features:
1.
The machine has memory function to save the set speed parameters of each product
2.
The machine is equipped with a touch screen, speed control and all other functions can be operated directly from the touch screen
3.
Emergency switch required in 2 corners, both in delivery and feeding side,greatly improve the safety, to ensure the safety of workers
4. Intelligent temperature control system,easy operation,can control of temperature deviation effective.
5. adopt hot circulating system,save energy effectivly.
6. Teflon screen belt , customers' designs are welcome
7.Far infrared heating pipe is especially suitable
for solidifying heat-set and special type of printing ink.
8.Adjustable belt speed and tunnel temperature controls.
Parameters:
10.Constant temperature will be 2º C more or less
12.6PCS infrared lamps
Services offered by seller
该卖家提供新机器
该卖方可以帮助您计划和执行整个项目
该卖家提供备件
