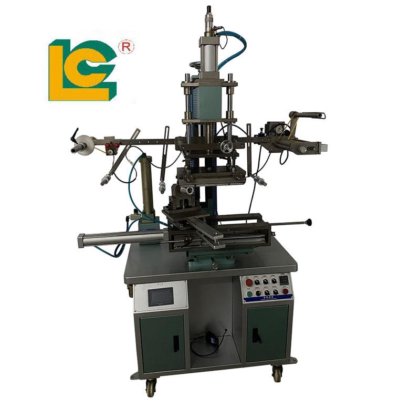

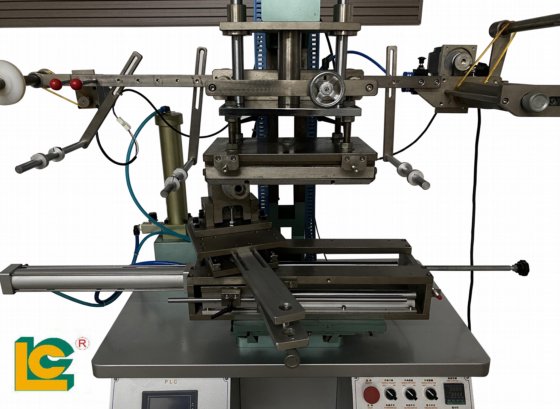

新 带旋转台的杯用烫金机 在 东莞市, 广东省, 中国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
描述
Features:
1 An electronic controller IC integrated multifunction procedures to ensure that the machine to roll stamping , round surface, such as a multi-purpose pressure round running.
2 Gilding press elbow mechanism design, less compressed air consumption, strong steady pressure.
3 Stamping pressure, temperature, hot pressing time is adjustable.
4 Work table can be customized to move back and forth automatically, it is easy tofacilitate safe and fast operation.
5 Work table can swing around a center of rotation of the workpiece for rolling without slipping.
6 automatic document feeder, collection, and adjustable. Taiwan OUTAI motor, and it can be customized for Two-speed motor and high precision positioning
7 Equipped with photocell (Taiwan FOTEK electric eye, 250 times per second high-precision motion), which try to locate the point of thermal transfer paper with precise tracking control.
8 The height of lettering head is adjustable, stamping 300MM larger workpieces. Germany BOSCH can be customized cylinder (super seal wear).Using Taiwan Mindman precise control solenoid valve, German NASS coil stable and durable.
9 The work table level shuttle is using the wind to push oil conversion device, the working mechanism drives the workpiece rotate smoothly stamping, stamping stable quality.
10 The machine can be customized according to customer requirements horizontal, hydraulic, grinding cross table, two-speed winders, table plus rodless cylinder automatic access, roll-to-roll hot stamping, stamping irregular shaped product development and so on.
11 Equipped with emergency stop safety devices to protect the safety of the operator.
Product parameters:
1.model number-- LC-300RT
2.hot Stamping plane plate size--200*150mm
3.cylinder size --￠ 80mm
4.Wattage-2500W
6.Max.stamping speed--1000 pcs/hr
7.Machine Dimensions(L*W*H)- 900*750*1800mm
8.Stamping pressure range-≤1000kgf
9.Wattage：220V,60Hz
10.Air Pressure：0.5-0.7MPa
Services offered by seller
该卖家提供新机器
该卖方可以帮助您计划和执行整个项目
该卖家提供备件
