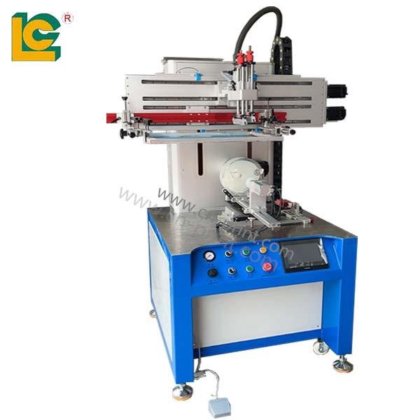

新 数控伺服异形瓶丝网印刷机 在 东莞市, 广东省, 中国

.

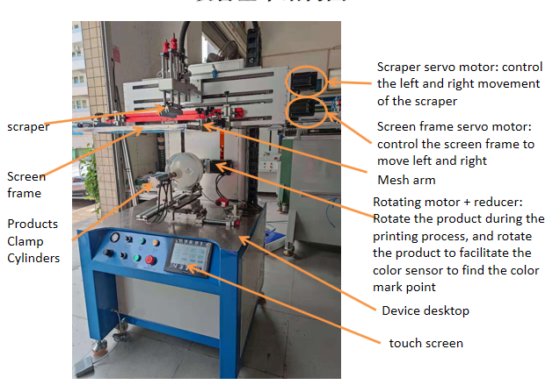

Function：
1.High-precision linear guideway control lifting and dropping of screen plate and rubber squeegee;
2.Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
3.Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
4.Screen forme Clamping device free to adjust to fit different sizes of screen;
5.Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
6.Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
7.Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
8.Microcomputer program control operations;
9.4-Digit auto counter; to facilitate the measurement of production efficiency.
Specification：
2. Product appearance:round, oval,square,Triangle and Alien shape bottles and other more than 10 kinds of special-shaped bottles.
4.(Round)Max printing arc length: L: 670mm
8.Machine size:
1000*1200*1750mm
12.Packing size:
1450*1150*1850mm
Mechanical parts and structure material selection：
