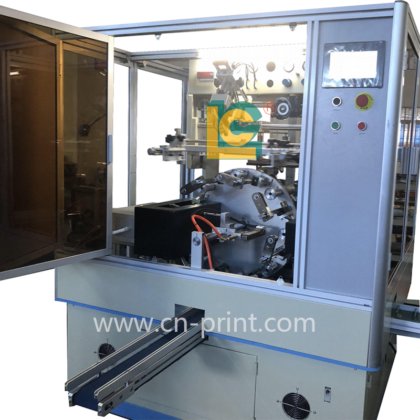

新 玻璃瓶单色自动 UV 丝网印刷机 在 东莞市, 广东省, 中国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- 品牌
- 辽宁省
- 单价
- 32800 美元/台
- 最低订购量
- 1个单位
- 价格条款
- EXW,东莞,中国
- 包装
- 夹板箱
- 交付时间
- 支付确认后60天
- 标准证书
- 剑桥大学
- 应用区
- 玻璃瓶
- 物品
- 规格
- 最大印刷速度
- 3200 件/小时
- 印刷区
- 50 毫米 x 150 毫米
- 瓶子高度
- 20 毫米 < 高度 < 150 毫米
- 瓶子直径
- 10 毫米 < 直径 < 60 毫米
- 紫外线灯功率
- 4 KW
- 主机尺寸
- 1500 毫米 x 1180 毫米 x 1900 毫米
- 机器覆盖面积
- 2600 毫米 x 3600 毫米 x 2000 毫米
- 机器重量
- 1100 kg
- 供气
- 5 至 7 巴
- 空气消耗
- 100 升/分钟
- 电力供应
- 380V,3相,50Hz
- 功率消耗
- 4.5 kw
- Https
- // /2_5uKA_-eZc
- 子类别
- 印刷
- 子类别 2
- 杯/管/口红/衬圈印刷线
- 产品编号
- 95717778
描述
Product Description
Features
The biggest feature of this machine is especially for glass bottles, aluminum bottles, stainless
steel bottles without positioning points. The clamp rotates as a whole, and the bottle does not
move. Ensure that the bottle is not thrown out, broken or moved. Can add German sensors,
multicolor overprint. High speed printing, the speed can be at least 50pcs/min.
One color automatic UV screen printer with photoelectronic sensors
Japan Fuji servo and Japan Hitachi PLC system,And the German Leuze color sensor is used to recognized the print position.
One color automatic UV screen printer with photoelectronic sensors video
One color automatic UV screen printer with photoelectronic sensors specifications
One color automatic UV screen printer with photoelectronic sensors Advantages:
1.Specially design for glass bottle, metal bottle, plastic bottle automatic UV screen printing
2.Servo optical fiber indexing is possible to do multi-colors printing and overpint for some applications
3.The machine integrates automatic feeding device, flame treatment, automatic direction detect ice device and UV curing system and so on
4. It combines mechanical driven with pneumatic driven, and LED display. The maximun printing capacity of the machine is 3200pcs/hr.
5. This system is equipped with various warning devices such as low pressure and Overloading.The sensor can detect “no product,no printing”.
6. The electrical components and control system adopt from Japan and Germany, ensure good printing quality
7. We provide machine design and construction services for special aplication
One color automatic UV screen printer with photoelectronic sensors fitting:
1. One set fixture for the product
2. One screen frame
3. One operation manual.
Our Services
16 hours online services
8:00 am--12:00pm (Monday- Saturday)
24 hours phone call services (Monday- Sunday)
In order to benefit good rights and interests for our customers, we have done the testing strictly before the machine exports; try to provide the best after-sales service for our customers.
Company Purpose: The best quality, leading technology, and provide the best product and service for our customers.
Shoule need more information about ourone color automatic screen printer for 12mm diameter test tube or other machines please contact wiht us
