新 HG 4U PRO 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Models hg 4u pro
- 800900100012002000
- Electrolytic cell
- PEM technology
- Drying system
- PSA (Pressure Swing Adsorption)
- H2 purity (1)
- >99.99999%
- Outlet pressure
- 12 bar (174 psi) – optional 16 bar (232psi)
- H2 flow rate cc/min (max)
- 800900100012002000
- Dimensions
- Standard 19” Rack 4U – deep 48cm
- Net weight (water tank empty)
- 22Kg25Kg26Kg
- Rs485
- Standard
- Rs232
- Standard
- Usb
- Standard
- Lan
- Optional
- Parallel mode capability
- Standard
- Fill canister function
- Standard
- Quality
- Deionized, ASTM II, <0.1uS
- Supply pressure (min, max)
- 0 bar (0 psi), 0.5 bar (7.25 psi)
- Supply flow rate(min, max)
- 0.2 l/min, 1.5 l/min
- Internal water tank capacity
- 1.1 l
- External tank capacity
- 5, 10 or 24 l
- Connection type
- IEC320-C14
- Supply voltage
- 100-240Vac (±10%) 50/60 Hz (200-240Vac (±10%) 50/60Hz for 4U PRO 2000)
- Nominal power (max)
- 640W1000W
- Fuse rating (5×20 mm)
- 6,3A (250VAC – T – L / 35A)
- Hydrogen outlet
- 1/8” Compression Fitting
- Water
- Quick Release Push in Fitting
- Vent(s)
- 1/8” BSPP female
- 产品编号
- 95636558
描述

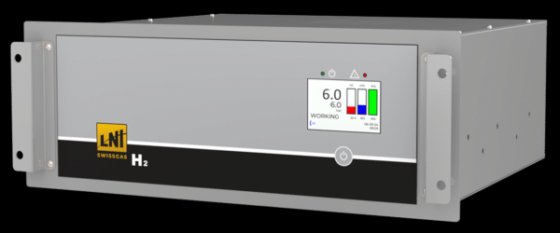

The HydroGen series HG 4U PRO is able to generate 2000 cc/min of Hydrogen with purity better than 99.99999% and pressure up to 16 bar (232 PSI). The HG 4U PRO includes an electrolytic cell with polymeric membrane (PEM) using distilled water. The two-column PSA drying system with automatic regeneration ensures the maximum grade of hydrogen purity, and is completely maintenance-free. The HG 4U PRO is the ideal Hydrogen for all GC-FID detectors. The on-board CPU constantly control the operating parameters to guarantee full safety. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
