新 CW-800 在 东京都, 日本
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Capacity
- Max 6 kg
- Single interval
- e= 1g
- Pack speed
- up to 150 packs per minute
- Pack size
- L80-300mm x W40-250mm
- Screen
- 15" Colour LCD touchscreen
- Touch panel
- XGA a-Si TFT LCD Resistive touch
- Weighing modes
- Fixed Weight, Average (Emark)
- Communication
- Ethernet, USB, RS232
- Operating system
- Windows 10 OS
- Language
- Multi-lingual Unicode
- Software
- WorldView (embedded application)
- Database
- SQL
- Connectivity
- Remote programming and control
- Power supply
- 220-240V(115V Option) 50/60Hz AC Single Phase
- Operating temperature
- 0 to +30°C
- Scale cover
- 'lift-off' formed polycarbonate
- Sensors
- Overhead retro reflective
- Pack guides
- Adjustable width pack guides
- Conveyors
- Blue belts
- 子类别
- 包装检验与分拣系统
- 产品编号
- 95223310
描述
感谢您访问我们的网站。现在，我们仅能用英语提供本信息。我们正在不断努力用中文提供更多的内容。感谢您耐心等待！

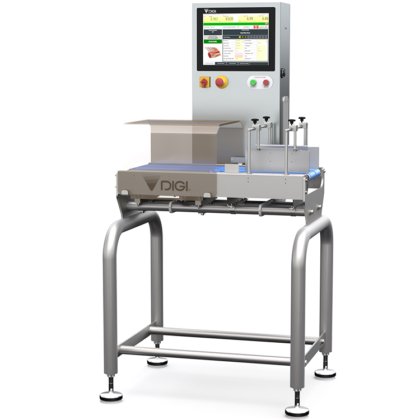

Compact, Single-Framed Checkweighing System For High Productivity
CW-800
食品工业
主要功能
The CW-800's compact, single-framed design makes it ideal for integration into existing lines. With a pack speed of up to 150ppm, its high productivity will ensure targets are met.
Automatic Checkweighing of up to 150ppm
Understanding the demands of the modern production environment, the CW-800 has been designed with a direct drive conveyor system that provides reliable processing of up to 150 packs per minute.
Compact Design
The CW-800 is based on a single 304L grade stainless steel frame, ensuring that valuable floor space is not used unnecessarily. Please refer to 'specifications' for all dimensions.
User-Friendly Interface
The CW-800 uses an industrial PC, utilising DIGI’s WorldView software running on Microsoft® Windows® operating system.
