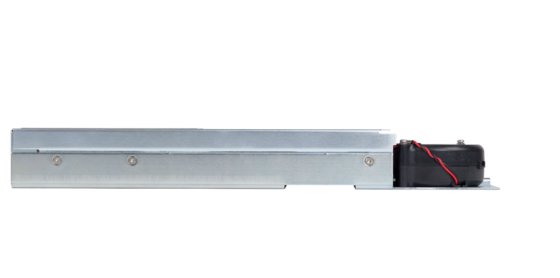

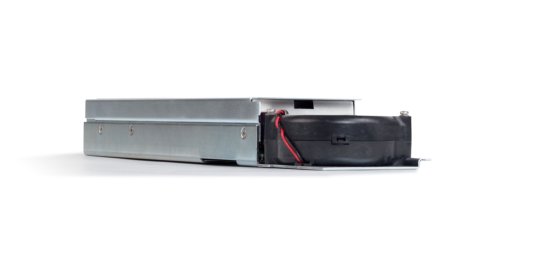

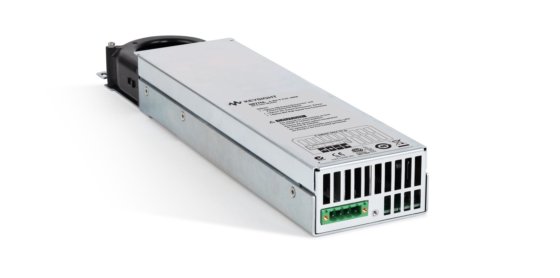

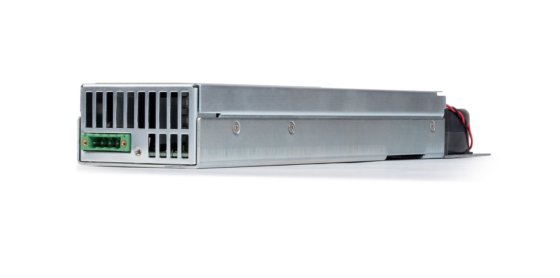

二手 Keysight Technologies N6774A 在 哈罗, 英格兰, 英国
二手
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 二手
- Maximum voltage
- 35V
- Maximum current
- 8.5A
- Maximum power
- 300W
- Channel/port count
- 1
- Phases
- 1
- Feature
- Parameter
- Output ratings
- Voltage: 35 V Current: 8.5 A Power: 300 W
- Programming accuracy (at 23°c ±5°c)
- Voltage: 0.1% + 35 mV Current: 0.15% + 60 mA
- Ripple and noise (20 hz to 20 mhz)
- Voltage peak-to-peak: 22 mV Voltage rms: 5 mV Current rms: 6 mA
- N6700c
- Low-profile modular power system mainframe, 400 W. Holds 1 to 4 modules.
- N6701c
- Low-profile modular power system mainframe, 600 W. Holds 1 to 4 modules.
- N6702c
- Low-profile modular power system mainframe, 1200 W. Holds 1 to 4 modules.
- N6705c
- DC Power Analyzer Mainframe 600W. Holds 1 to 4 modules.
- N6708a
- Filler panel kit Required when you have less than 4 modules in a mainframe. Each filler kit contains 3 filler panels.
- N6709c
- Rack mount kit Required for rack mounting. Standard rack mount hardware will not work.N6708A
- N6731b
- DC Power Module; 5V / 10A / 50W
- N6732b
- DC Power Module; 8V / 6.25A / 50W
- N6733b
- DC Power Module; 20V / 2.5A / 50W
- N6734b
- DC Power Module; 35V / 1.5A / 50W
- N6735b
- DC Power Module; 60V / 0.8A / 50W
- N6736b
- DC Power Module; 100V / 0.5A / 50W
- N6741b
- DC Power Module; 5V / 20A / 100W
- N6742b
- DC Power Module; 8V / 12.5A / 100W
- N6743b
- DC Power Module; 20V / 5A / 100W
- N6744b
- DC Power Module; 35V / 3A / 100W
- N6745b
- DC Power Module; 60V / 1.6A / 100W
- N6746b
- DC Power Module; 100V / 1A / 100W
- N6751a
- Autoranging DC Power Module; 50V / 5A / 50W
- N6752a
- Autoranging DC Power Module; 50V / 10A / 100W
- N6753a
- Autoranging DC Power Module; 20V / 50A / 300W Occupies 2 of 4 mainframe slots
- N6754a
- Autoranging DC Power Module; 60V / 20A / 300W Occupies 2 of 4 mainframe slots
- N6755a
- Autoranging DC Power Module; 20V / 50A / 500W Occupies 2 of 4 mainframe slots
- N6756a
- Autoranging DC Power Module; 60V / 17A / 500W Occupies 2 of 4 mainframe slots
- N6761a ¹
- Precision DC Power Module; 50V / 1.5A / 50W
- N6762a ¹
- Precision DC Power Module; 50V / 3A / 100W
- N6763a ¹
- Precision DC Power Module; 20V / 50A / 300W Occupies 2 of 4 mainframe slots
- N6764a ¹
- Precision DC Power Module; 60V / 20A / 300W Occupies 2 of 4 mainframe slots
- N6765a ¹
- Precision DC Power Module; 20V / 50A / 500W Occupies 2 of 4 mainframe slots
- N6766a ¹
- Precision DC Power Module; 60V / 17A / 500W Occupies 2 of 4 mainframe slots
- N6773a
- DC Power Module; 20V / 15A / 300W
- N6774a
- DC Power Module; 35V / 8.5A / 300W
- N6775a
- DC Power Module; 60V / 5A / 300W
- N6776a
- DC Power Module 100V / 3A / 300W
- N6777a
- DC Power Module; 150V / 2A / 300W
- N6781a ¹
- 20V, ± 3A, 20W source/measure unit
- N6782a ¹
- 20V, ± 3A, 20W source/measure unit
- N6783a-bat ²
- 8V, 3A, 24W battery charge/discharge module
- N6783a-mfg ²
- 6V, 3A, 18W mobile communications module
- N6784a ¹
- ± 20V, ± 3A, 20W source/measure unit
- N6785a ¹
- 20V, +/-8A, 80W source/measure unit
- N6786a ¹
- 20V, +/-8A, 80W source/measure unit
- N6791a
- DC Electronic Load Module; 60V / 20A / 100W
- N6792a
- DC Electronic Load Module; 60V / 40A / 200W
- 产品编号
- 95098792
描述
Precision DC Power Module; 35 V / 8.5 A / 300 W
The Keysight N6774A DC Power Module, 35V, 8.5A, 300W, is a basic DC power module that provides programmable voltage and current, measurement and protection features at a very economical price.
Keysight high-performance modules increase test flexibility with autoranging outputs, providing higher current at more voltages. Autoranging outputs provide the greatest flexibility to keep up with changes to test requirements. Lower noise and higher accuracy are ideal for precise testing. Eliminate the need for an external multimeter with an accuracy of 0.06%. Fast up and down programming allows for quick testing, up to 50 times faster than a conventional power supply.
The Keysight N6774A is a 300 W basic DC power module that provides programmable voltage and current, measurement and protection features at a very economical price, making these modules suitable to power the DUT or to provide power for ATE system resources such as fixture control.
