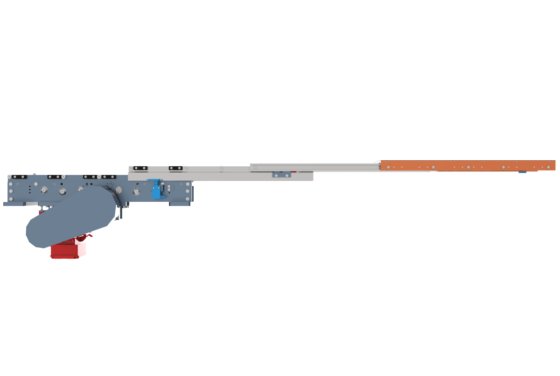

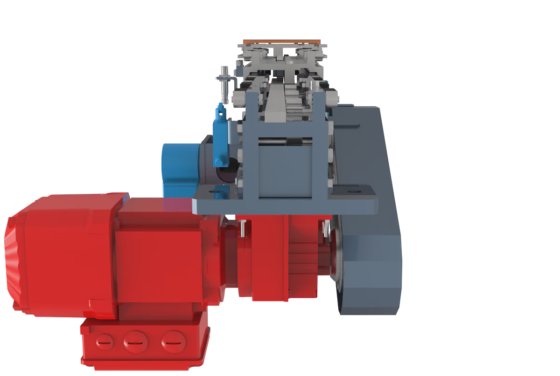

新 LHD ZEUS 75 在 Bruino, 皮埃蒙特, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- 库存编号
- Z75
- Fixed body length (mm)
- 1000; 1100; 1200; 650; 700; 800; 900
- 负载
- 40; 50; 70; 90
- 满载最大弯曲
- 11; 13; 18; 21; 24; 27; 29
- 行程
- 1300; 1400; 1600; 1800; 2000; 2200; 2400
- Upper slide length (mm)
- 1000; 650; 700; 800; 900
- Standard length
- from 650 mm to 1200 mm
- Stroke
- from 1300 mm to 2400 mm
- Payload
- up to 90 kg(198 Lb)
- Cross section
- W x H = 210 x 75
- Speed without load
- up to 45 m/min
- Acceleration without load
- 1 m/s^2
- 分类
- 双深货叉
- 子类别
- 负载处理设备
- 产品编号
- 95047825
描述
ZEUS 75 – Load up to 90 kg (198 Lb)
Being the double depth version of the ARES 40, the ZEUS 75 is particularly fit for those applications with a small required space of the slides. The fixed body consists of parts made of a steel/aluminium compound; hence, the total weight of the device is limited.
The ZEUS 75 is recommended as single fork with a larger plate installed on top, for handling small carton or plastic boxes within the mini-load sector.
ZEUS 75
Load up to 90 kg (198 Lb)
应用领域：
特殊环境
自动仓库
ZEUS 75 Double-Depth Telescopic Forks can be supplied with the following options:
– Lift Systems:
ATLAS X1
,
ATLAS X2
,
ATLAS X3
,
GEMINI X1
– Unit Transfer Systems:
PHOEBUS X1
,
PHOEBUS X2
,
GRYPHON
,
SPHINX
– Belt version available for small load
