新 LHD PHOEBUS X2 在 Bruino, 皮埃蒙特, 意大利

规格参数

新旧状况
库存编号
PH-X2
Standard length
from 650 mm to 1250 mm
Maximum payload
2 x 50 kg (2 x 110 Lb)
Acceleration without load
up to 1 [m/s2]
Speed without load
up to 45 [m/min]
子类别
单元传输
产品编号
95047781

描述

In Stock

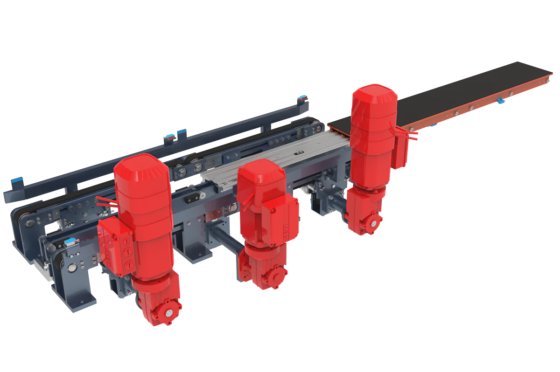

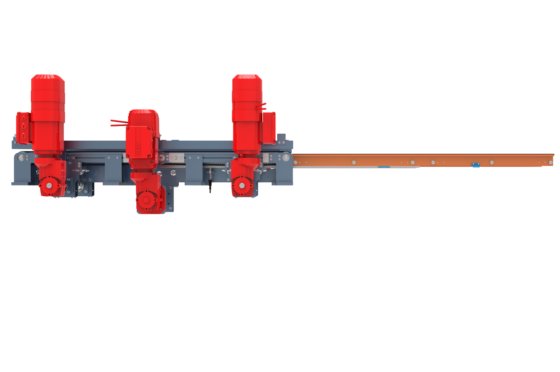

PHOEBUS X2 – Load up to 100 Kg (220 Lb)
Designed for backing up the telescopic forks, the two lateral belt conveyor allows moving the loads onboard simultaneously. The fork set can pick up the load from the shelf, and then the PHOEBUS can lay it down in the unloading bay with no further need of telescopic stroke.
The number of belts can be redoubled, thus making it even more flexible and versatile – it can also handle a double load onboard. Therefore, it’s possible to halve the operation time by handling two loads at once.
The same system can involve chains instead of belts, to handle way bigger loads with the same benefits.

PHOEBUS X2
Unit transfer – Load up to 100 Kg(220 Lb)
应用领域:
小型负载
PHOEBUS X2 Telescopic Forks can be supplied with the following options:
– With chain instead of belts
– With ARES
Single-Depth
Telescopic Forks Category
– With ZEUS
Double-Depth
Telescopic Forks Category

请向卖家询价

品牌
LHD
型号
PHOEBUS X2
位置
🇮🇹 Bruino, 皮埃蒙特, 意大利
