新 LHD ARES 30 在 Bruino, 皮埃蒙特, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- 库存编号
- AR30
- Fixed body length (mm)
- 600; 650; 700; 750; 800; 900
- 负载
- 15
- 满载最大弯曲
- 10; 4; 5; 6; 7; 8
- 行程
- 1000; 700; 750; 800; 850; 900
- Upper slide length (mm)
- 600; 650; 700; 750; 800; 900
- Standard length
- from 600 mm to 900 mm
- Load
- up to 15 kg
- Stroke
- from 700 mm to 1000 mm
- Cross section
- W x H = 150 x 30
- Speed without load
- 45 [m/min]
- Acceleration without load
- 1 [m/s2]
- 分类
- 单深货叉
- 子类别
- 负载处理设备
- 产品编号
- 95047649
描述
In Stock

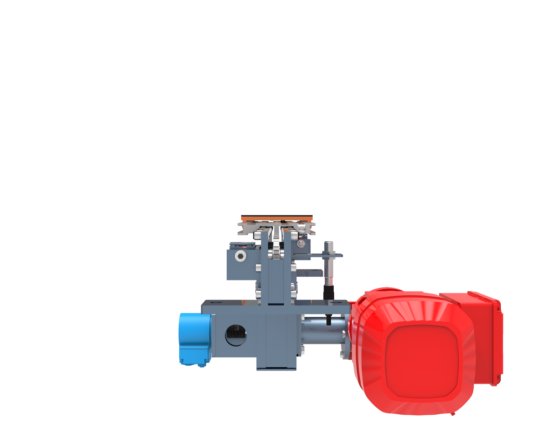

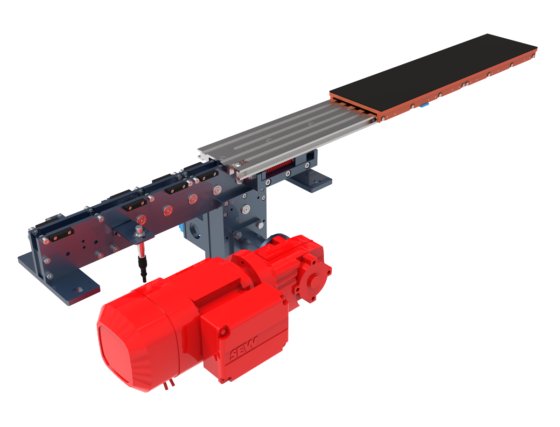

ARES 30 – Load up to 15 Kg
The thickness of slides is just 30 mm so, at the moment being the smallest forks on the market.
ARES 30 can move loads with limited weight, especially where a small size ratio is required. Belts and pulleys provide the movement. This kind of Telescopic Fork achieves remarkable performances as for top speed and acceleration.
The fixed body consist of parts made of steel/aluminium compound to assure a low weight of the fork.
ARES 30
Single depth – Load up to 15 Kg
应用领域：
小型负载
无人搬运车/穿梭车/激光导引车
洁净室
特殊环境
食品&饮料
ARES 30 Single-Depth Telescopic Fork for miniloads can be supplied with the following options:
– Lift Systems:
ATLAS X1
,
ATLAS X2
,
ATLAS X3
,
GEMINI X1
– Unit Transfer Systems:
PHOEBUS X1
,
PHOEBUS X2
,
GRYPHON
,
SPHINX
– Belt version available for small load
