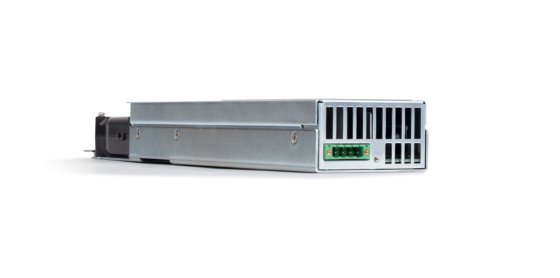

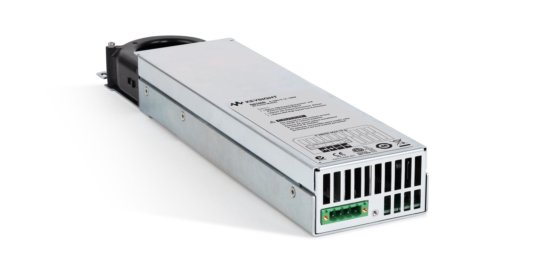

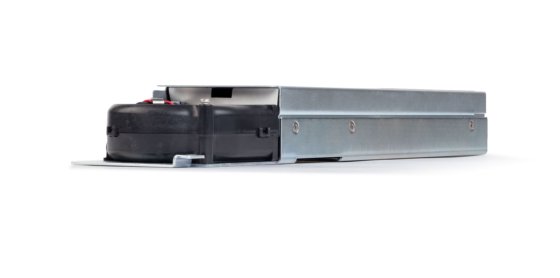

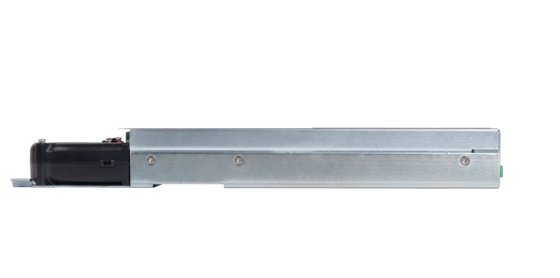

二手 Keysight Technologies N6746B 在 哈罗, 英格兰, 英国
二手
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 二手
- Maximum voltage
- 100V
- Maximum current
- 1A
- Maximum power
- 100W
- Channel/port count
- 1
- N6700c
- Low-profile modular power system mainframe, 400 W. Holds 1 to 4 modules.
- N6701c
- Low-profile modular power system mainframe, 600 W. Holds 1 to 4 modules.
- N6702c
- Low-profile modular power system mainframe, 1200 W. Holds 1 to 4 modules.
- N6705c
- DC Power Analyzer Mainframe 600W. Holds 1 to 4 modules.
- N6708a
- Filler panel kit Required when you have less than 4 modules in a mainframe. Each filler kit contains 3 filler panels.
- N6709c
- Rack mount kit Required for rack mounting. Standard rack mount hardware will not work.N6708A
- N6731b
- DC Power Module; 5V / 10A / 50W
- N6732b
- DC Power Module; 8V / 6.25A / 50W
- N6733b
- DC Power Module; 20V / 2.5A / 50W
- N6734b
- DC Power Module; 35V / 1.5A / 50W
- N6735b
- DC Power Module; 60V / 0.8A / 50W
- N6736b
- DC Power Module; 100V / 0.5A / 50W
- N6741b
- DC Power Module; 5V / 20A / 100W
- N6742b
- DC Power Module; 8V / 12.5A / 100W
- N6743b
- DC Power Module; 20V / 5A / 100W
- N6744b
- DC Power Module; 35V / 3A / 100W
- N6745b
- DC Power Module; 60V / 1.6A / 100W
- N6746b
- DC Power Module; 100V / 1A / 100W
- N6751a
- Autoranging DC Power Module; 50V / 5A / 50W
- N6752a
- Autoranging DC Power Module; 50V / 10A / 100W
- N6753a
- Autoranging DC Power Module; 20V / 50A / 300W Occupies 2 of 4 mainframe slots
- N6754a
- Autoranging DC Power Module; 60V / 20A / 300W Occupies 2 of 4 mainframe slots
- N6755a
- Autoranging DC Power Module; 20V / 50A / 500W Occupies 2 of 4 mainframe slots
- N6756a
- Autoranging DC Power Module; 60V / 17A / 500W Occupies 2 of 4 mainframe slots
- N6761a ¹
- Precision DC Power Module; 50V / 1.5A / 50W
- N6762a ¹
- Precision DC Power Module; 50V / 3A / 100W
- N6763a ¹
- Precision DC Power Module; 20V / 50A / 300W Occupies 2 of 4 mainframe slots
- N6764a ¹
- Precision DC Power Module; 60V / 20A / 300W Occupies 2 of 4 mainframe slots
- N6765a ¹
- Precision DC Power Module; 20V / 50A / 500W Occupies 2 of 4 mainframe slots
- N6766a ¹
- Precision DC Power Module; 60V / 17A / 500W Occupies 2 of 4 mainframe slots
- N6773a
- DC Power Module; 20V / 15A / 300W
- N6774a
- DC Power Module; 35V / 8.5A / 300W
- N6775a
- DC Power Module; 60V / 5A / 300W
- N6776a
- DC Power Module 100V / 3A / 300W
- N6777a
- DC Power Module; 150V / 2A / 300W
- N6781a ¹
- 20V, ± 3A, 20W source/measure unit
- N6782a ¹
- 20V, ± 3A, 20W source/measure unit
- N6783a-bat ²
- 8V, 3A, 24W battery charge/discharge module
- N6783a-mfg ²
- 6V, 3A, 18W mobile communications module
- N6784a ¹
- ± 20V, ± 3A, 20W source/measure unit
- N6785a ¹
- 20V, +/-8A, 80W source/measure unit
- N6786a ¹
- 20V, +/-8A, 80W source/measure unit
- N6791a
- DC Electronic Load Module; 60V / 20A / 100W
- N6792a
- DC Electronic Load Module; 60V / 40A / 200W
- 产品编号
- 94419082
描述
DC Power Module; 100V / 1A / 100W
Keysight's basic performance modules provide stable output, device protection, and accurate measurements. A single range enables programming voltages and currents from 0 V and 0 A to their maximum voltage and current rating. Use two-wire local sense or four-wire remote sense to improve regulation. All modules feature a quick disconnect connector.
Key Features
Programmable output voltages: 0 to 150 V
Output power: 50 to 300 W
Voltage accuracy: 0.1% + 19 mV (5V output)
Ripple and noise 10 mV (5V output)
Up and down-programming with resistive load typically 20 ms
Overvoltage, overcurrent, and overtemperature protection
Basic modules are single wide allowing four per mainframe
Modules can operate at lower output power to stay within mainframe rating
Modules include a quick disconnect connector
Specifications
N6700 Series Mainframes
Model Overview
Model
Description
N6700C
Low-profile modular power system mainframe, 400 W.
Holds 1 to 4 modules.
N6701C
