二手 Keysight Technologies E5080B 在 哈罗, 英格兰, 英国
二手
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 二手
- High frequency (range)
- 50GHz ＜= 85GHz
- Low frequency (range)
- 1kHz ＜= 100kHz
- Form factor
- Benchtop
- Feature
- Parameter
- Maximum frequency
- 53 GHz
- Minimum frequency
- 9 kHz / 100 kHz
- Sa start frequency
- 9 kHz / 100 kHz
- System dynamic range
- ＞ 140 dB
- Output power
- 10 dBm
- Number of built-in ports
- 2 or 4 ports (2nd source (optional) on 4-ports)
- Harmonics
- -25 dBc (Typical)
- Best speed at 201 point, 1 sweep
- 1.6 msec
- Instrument type
- Benchtop
- Applications
- S-Parameters Signal Integrity Balance Measurements
- Components
- Cables Antennas Mixers/Frequency Converters Filters/Duplexers Amplifiers Connectors Isolators
- System features
- Internal Bias-tees (optional, up to 20 GHz) Built-in DC Sources (optional) GPIB Interface (optional) Device Handler I/O Device Test, Application I/O Removal SSD Interfaces: Ethernet, USB2.0/3.0, DisplayPort VGA
- Danl @1 ghz
- -150 dBm/Hz (Typical)
- Phase noise @1 ghz (1 mhz offset)
- -128 dBc/Hz (Typical)
- Phase noise @1 ghz (10 khz offset)
- -103 dBc/Hz (Typical)
- Benchtop
- Yes
- Temperature stability
- 0.005 dB/ ⁰C (Typical)
- Weight
- 14 kg (2-port), 15 kg (4-port)
- 产品编号
- 93142888
描述

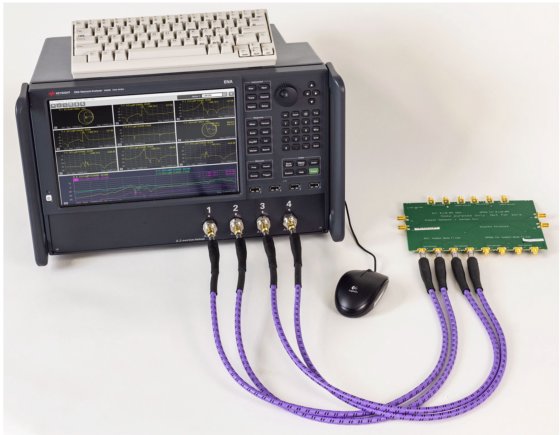

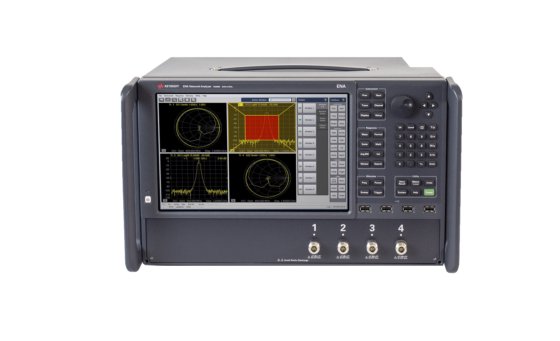

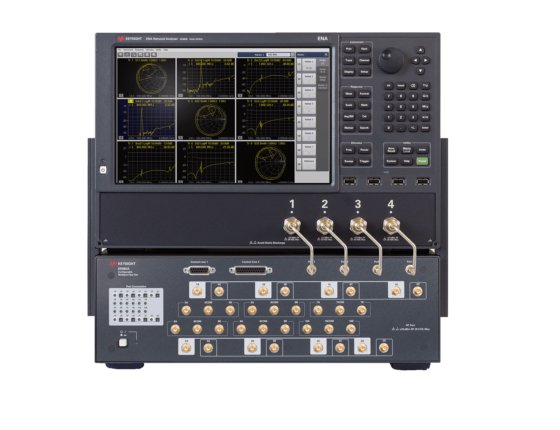

ENA Vector Network Analyzer
As devices become highly integrated, complete characterization requires a complete RF and microwave measurement solution. The E5080B brings R&D performance up to 53 GHz1 and flexibility to a midrange platform. Best-in-class dynamic range, trace noise, and temperature stability guarantee reliability and repeatability. Test consistently across your entire workflow with the same UI and SCPI commands as high-end PNAs.
The E5080B enables complete device characterization for passive components, amplifiers, mixers, and frequency converters. You can perform more tests with one box with integrated features such as DC sources, bias tees, pulse generators, pulse modulators, and internal second source2 . Gain deeper insights with software applications including spectrum analysis, mixer measurements, and noise figure. Choose from a 2- or 4-port option with frequency coverage from 9 kHz up to 20 GHz or for higher frequencies, 100 kHz up to 53 GHz.
Key Features
9 kHz to 4.
