新 数控伺服液压转塔冲床 数控转塔冲床带索引模具 在 南京市, 江苏省, 中国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
描述

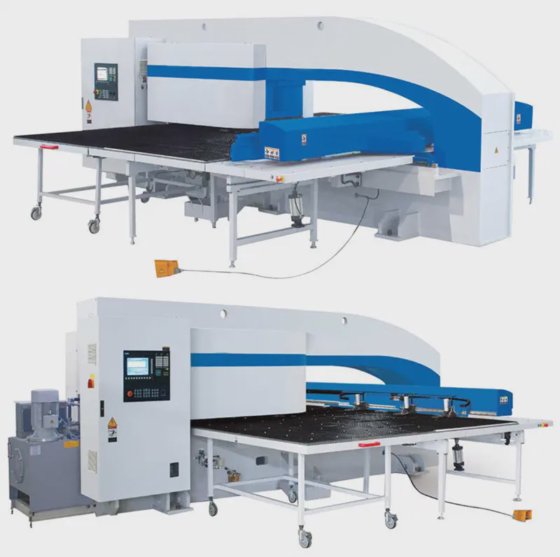

CNC servo hydraulic turret punch machine cnc turret punching machine with index molds
Servo CNC Servo Turret Punch press
Brief Introduction
Specifications
Max workpiece weight Kg 156
5.Max punch diameter mm Ф88.9
6.Number of stations 32
Working accuracy mm ±0.1
Max. hit speed HPM 600
Workpiece traveling speed m/min 106
Turret speed r/min 30
Frame construction Closed-type
Throat mm 1275
Number of control axis 5 axes (X, Y, T, C)
Max rotary station punching diameter mm Ф50.8
Repeatability mm 0.02
Number of clamp 2
Clamp type Pneumatic type
Heat treatment of the frame Tempering
Tool type Long guide sleeve type
(AMADA)
Turret construction Long bushing in the thin turret
Air pressure Mpa 0.6
Machine dimension (L*W*H) mm 5300*5000*2200
Machine weight kg 18500
Imported ballscrews with long travel, and linear guideways ensure transmission precision.
The worktable with hard brush and steel ball reduces noise and shock of the machine, and protects surface of the work piece.
