描述
Description

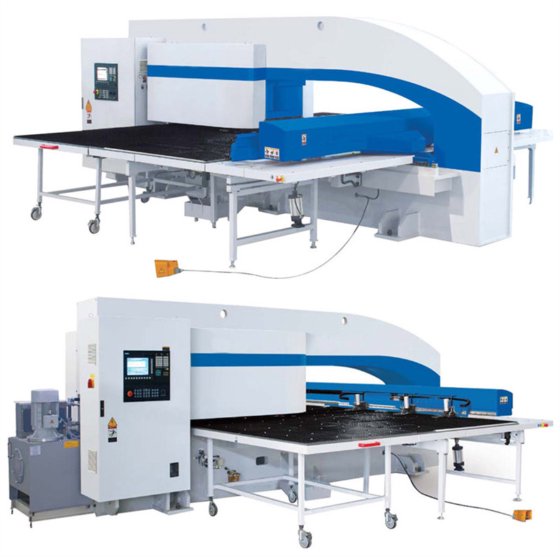

CNC servo hydraulic turret punch machine cnc turret punching machine with index molds
Servo CNC Servo Turret Punch press
Brief Introduction
Specifications
Nominal force KN 300 Workpiece size mm 1500*5000
Max workpiece weight Kg 156
Max workpiece thickness mm 6.35
5.Max punch diameter mm Ф88.9
6.Number of stations 32
Working accuracy mm ±0.1
Max. hit speed HPM 600
Workpiece traveling speed m/min 106
Turret speed r/min 30
Frame construction Closed-type
Throat mm 1275
Number of control axis 5 axes (X, Y, T, C)
Max rotary station punching diameter mm Ф50.8
Repeatability mm 0.02
Number of clamp 2
Clamp type Pneumatic type
Heat treatment of the frame Tempering
Tool type Long guide sleeve type
(AMADA)

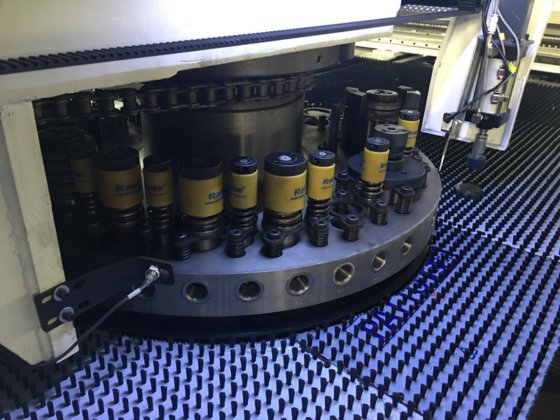

Turret construction Long bushing in the thin turret
Air pressure Mpa 0.6
Machine dimension (L*W*H) mm 5300*5000*2200
Machine weight kg 18500
