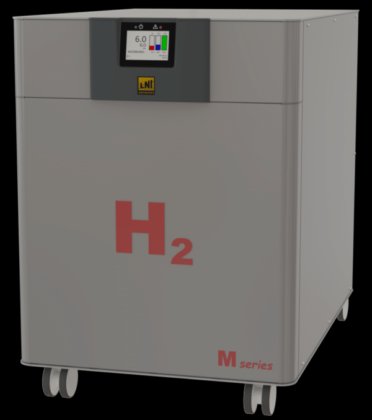

新 HG PRO M (LN) 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Model hg pro
- 4M4M LN8M8M LN16M16M LN20M20M LN
- Electrolytic cell
- PEM technology
- Drying system
- PSA (Pressure Swing Adsorption) / TSA (Thermal Swing Adsorption)
- H2 purity (1)
- >99.99999%
- Dew-point (2)
- -75°C (-103 °F)– 80 °C (-112°F)-75°C (-103 °F)– 80 °C (-112°F)-75°C (-103 °F)– 80 °C (-112°F)-75°C (-103 °F)– 80 °C (-112°F)
- Outlet pressure
- 12 bar (174 psi) / 16 bar (232 psi) (optional)
- H2 flow-rate (max)
- 4 SLPM at 21°C, 1 bar8 SLPM at 21°C, 1 bar16 SLPM at 21°C, 1 bar20 SLPM at 21°C, 1 bar
- Dimensions (w x h x d)
- 45 x 66 x 66.5 cm51 x 69 x 83 cm
- Net weight (no water)
- 60 kg61 kg62 kg63 kg86 kg88 kg88 kg90 kg
- N2 content
- –< 1 ppm–< 1 ppm–< 3ppm–< 3ppm
- Rs-232 / usb / rs-485 / digital i/o
- Standard
- Lan
- Optional
- Parallel mode
- Ready on board
- Fill hydride canister
- Standard
- Quality required
- Deionized, ASTM II, <0.1uS
- Supply pressure for autorefill (max)
- 0.1 bar (1.45 psi), 0.5 bar (7.25 psi)
- Flow rate (max) (3)
- 0.6 l/min
- Internal tank capacity
- 12 L
- Power connection
- IEC320-C14IEC-C20Power cable pre-connected with 16A plug
- Power supply voltage
- Single-phase 180~264VAC 50/60 HzThree-phases 4-wires (+ one ground wire) / Y 340~530VAC 50/60 Hz or optionally Three-phase 3-wires (+ one ground wire) /△196~305VAC 50/60 Hz
- Power consumption (4)
- 5.6 kWh/Nm3
- Nominal power at max flow (max)
- 1.92 kW)3.32 kW8 kW8 kW
- Unit protection system
- Fuse 10A (5x20mm)(250Vac-T)Fuse 16A (10x38mm) (500Vac-T-class CC)Magneto-thermic switch
- Hydrogen outlet
- 1/8” compression fitting¼” VCR (see options)
- Water
- Quick release push-in fitting
- Vent(s)
- 1/4” BSPP female thread (quick fitting for tube 10mm)
- Working / storage temperature
- 5-35°C (41-95°F)(5) / 1-50°C (34-122°F)
- Humidity (max)
- 70% (Non condensing)
- Noise
- < 52 dB(A) @ 1m front< 55 dB(A) @ 1m front
- Heat value (btu/h) (4)
- 1100 to 46002200 to 57004400 to 80005500 to 9000
- Ip rating
- IP20
- Pollution degree rating
- 2 (with no aromatic compounds)
- Altitude
- < 2000m
- 产品编号
- 90742350
描述
The HydroGen series HG PRO M can generate up to 20 L/min of Hydrogen with purity better than 99.99999% and pressure up to 16 bar (232 psi). The HG PRO M includes a new long life multilayer electrolytic cell with polymeric membrane (PEM) using ultra pure water. No acid or alkaline solutions are used.
The two-column PSA drying system with automatic regeneration ensures the maximum grade of hydrogen purity. It is completely maintenance-free. The HG PRO M series provides the ideal Hydrogen for many applications, such as CVD, Central Laboratory Supply and other applications in need for reliable supply of UHP. The on-board CPU constantly controls the operating parameters to guarantee full safety. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
