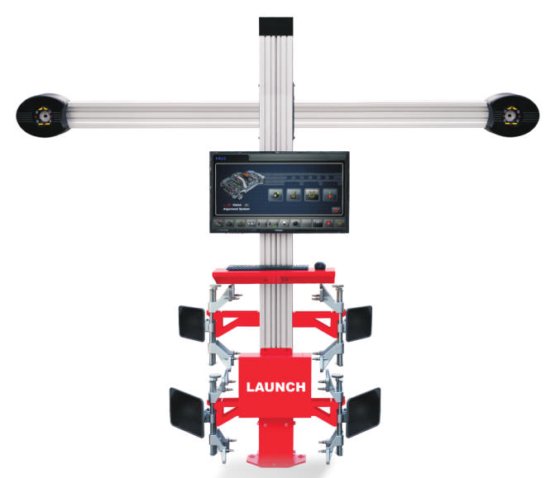

新 X831C1 在 上海市, 中国

product,Your face
Measuring
parameter:
Display
accuracy: Range - , Accuracy 1/0.01°/0.1mm
Camber: Range ±
10°, Accuracy ± 2'
Caster: Range ±
20°, Accuracy ± 6'
K.P.I.: Range ±
20°, Accuracy ± 6'
Toe-in: Range ±
20°, Accuracy ± 2'
Set back: Range
± 5°, Accuracy ± 2'
Thrust angle:
Range ± 5°, Accuracy ± 2'
Thread: Range
1,800mm, Accuracy ± 1mm
Wheelbase:
Range 3,500mm, Accuracy ± 2mm
Features:
1, Computer
calcutale four wheel alignment data through 3D digital
signals, target boards fixed on 4 wheels by 2
speedy&high-accuracy digital dynamic carmeras;
2, The four
target boards only have detector imagin, w/o electronic
parts and connection, reduce fault greatly;
3, Only lift one
time, or push the car, eccentric compensation could be
achieved, improve measuring speed very much;
4, No need
