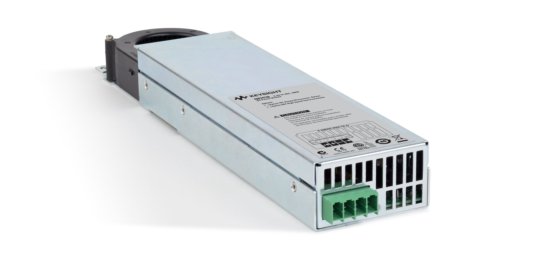

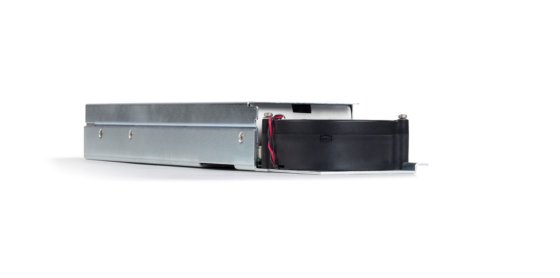

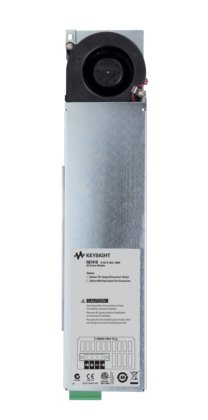

二手 Keysight Technologies N6741B 在 哈罗, 英格兰, 英国
二手
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 二手
- Maximum voltage
- 5V
- Maximum current
- 20A
- Maximum power
- 100W
- Channel/port count
- 1
- Phases
- 1
- Feature
- Parameter
- Output ratings
- Voltage: 5 V Current: 20 A Power: 100 W
- Programming accuracy (at 23°c ±5°c)
- Voltage: 0.1% + 19 mV Current: 0.15% + 20 mA
- Ripple and noise (20 hz to 20 mhz)
- Voltage rms: 2 mV Voltage peak-to-peak: 11 mV Current rms: 8 mA
- N6700c
- Low-profile modular power system mainframe, 400 W. Holds 1 to 4 modules.
- N6701c
- Low-profile modular power system mainframe, 600 W. Holds 1 to 4 modules.
- N6702c
- Low-profile modular power system mainframe, 1200 W. Holds 1 to 4 modules.
- N6705c
- DC Power Analyzer Mainframe 600W. Holds 1 to 4 modules.
- N6708a
- Filler panel kit Required when you have less than 4 modules in a mainframe. Each filler kit contains 3 filler panels.
- N6709c
- Rack mount kit Required for rack mounting. Standard rack mount hardware will not work.N6708A
- N6731b
- DC Power Module; 5V / 10A / 50W
- N6732b
- DC Power Module; 8V / 6.25A / 50W
- N6733b
- DC Power Module; 20V / 2.5A / 50W
- N6734b
- DC Power Module; 35V / 1.5A / 50W
- N6735b
- DC Power Module; 60V / 0.8A / 50W
- N6736b
- DC Power Module; 100V / 0.5A / 50W
- N6741b
- DC Power Module; 5V / 20A / 100W
- N6742b
- DC Power Module; 8V / 12.5A / 100W
- N6743b
- DC Power Module; 20V / 5A / 100W
- N6744b
- DC Power Module; 35V / 3A / 100W
- N6745b
- DC Power Module; 60V / 1.6A / 100W
- N6746b
- DC Power Module; 100V / 1A / 100W
- N6751a
- Autoranging DC Power Module; 50V / 5A / 50W
- N6752a
- Autoranging DC Power Module; 50V / 10A / 100W
- N6753a
- Autoranging DC Power Module; 20V / 50A / 300W Occupies 2 of 4 mainframe slots
- N6754a
- Autoranging DC Power Module; 60V / 20A / 300W Occupies 2 of 4 mainframe slots
- N6755a
- Autoranging DC Power Module; 20V / 50A / 500W Occupies 2 of 4 mainframe slots
- N6756a
- Autoranging DC Power Module; 60V / 17A / 500W Occupies 2 of 4 mainframe slots
- N6761a ¹
- Precision DC Power Module; 50V / 1.5A / 50W
- N6762a ¹
- Precision DC Power Module; 50V / 3A / 100W
- N6763a ¹
- Precision DC Power Module; 20V / 50A / 300W Occupies 2 of 4 mainframe slots
- N6764a ¹
- Precision DC Power Module; 60V / 20A / 300W Occupies 2 of 4 mainframe slots
- N6765a ¹
- Precision DC Power Module; 20V / 50A / 500W Occupies 2 of 4 mainframe slots
- N6766a ¹
- Precision DC Power Module; 60V / 17A / 500W Occupies 2 of 4 mainframe slots
- N6773a
- DC Power Module; 20V / 15A / 300W
- N6774a
- DC Power Module; 35V / 8.5A / 300W
- N6775a
- DC Power Module; 60V / 5A / 300W
- N6776a
- DC Power Module 100V / 3A / 300W
- N6777a
- DC Power Module; 150V / 2A / 300W
- N6781a ¹
- 20V, ± 3A, 20W source/measure unit
- N6782a ¹
- 20V, ± 3A, 20W source/measure unit
- N6783a-bat ²
- 8V, 3A, 24W battery charge/discharge module
- N6783a-mfg ²
- 6V, 3A, 18W mobile communications module
- N6784a ¹
- ± 20V, ± 3A, 20W source/measure unit
- N6785a ¹
- 20V, +/-8A, 80W source/measure unit
- N6786a ¹
- 20V, +/-8A, 80W source/measure unit
- N6791a
- DC Electronic Load Module; 60V / 20A / 100W
- N6792a
- DC Electronic Load Module; 60V / 40A / 200W
- 产品编号
- 87673246
描述
DC Power Module; 5V / 20A / 100W
The N6741B is a 100W programmable DC power module with basic features for use in the N6700 low-profile Modular Power System or N6705 DC Power Analyzer; uses one slot.
The Keysight N6741B is a 100 W basic DC power module that provides programmable voltage and current, measurement and protection features at a very economical price, making these modules suitable to power the DUT or to provide power for ATE system resources such as fixture control.
This module is used in both the small, multiple output 1U high N6700 Low-Profile Modular Power System (for ATE systems) and the multiple output N6705 DC Power Analyzer (for bench testing). GPIB, LAN, USB, and LXI compliance are standard. Select from more than 20 different DC power modules, ranging in capability from basic to high precision, and in power from 20 - 500 W.
Keysight's basic performance modules provide stable output, device protection, and accurate measurements.
