二手 阿托塑料拉链拉头制造机 在 广东省, 中国

Equipment use parameters
1. Power supply voltage 220v
2. Vertical double ratio injection molding machine 35-80TON, the opening and closing height of the upper and lower plates is more than 40CM
3. The equipment air pressure input must be greater than 0.5MPA to 0.6MPA

4. The length of the rope folded in half is 10CM, and the length of rope folded in half is 3CM
5. The minimum rope thickness is 1MM, the maximum rope thickness is 4.5MM.
6. The longest size of injection molded products is 4.2CM, and the shortest is 8MM
Equipment size: 230*115*180CM
Equipment weight: machine 205KG manipulator 35KG mold 45KG plastic cutting machine 15KG

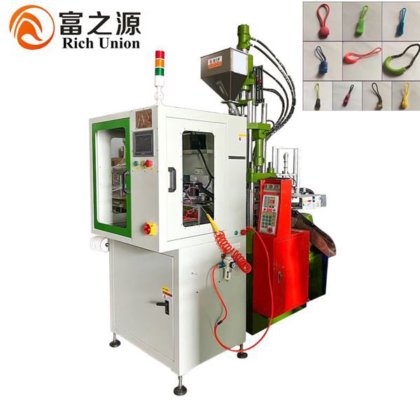

Main parts of equipment
Injection molding machine, guide rail, screw rod, slider, cylinder, sensor, PLC controller, display screen, mold base, motor
