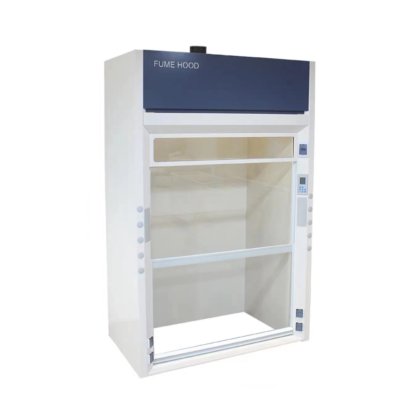

新 步入式通风橱 在 广州市, 广东省, 中国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- 外形尺寸（宽*长*高）（毫米）
- 1200*850*2350
- 内部尺寸（宽*长*高）（毫米）
- 960*680*2000
- 排风量
- 700-1300m³/h
- 风速
- 0.3～0.7 米/秒
- 子类别
- 机器
- 子类别 2
- 通风柜
- 产品编号
- 87455977
描述
SPECIFICATION
1.Hood body: 1.0mm full-thickness high-quality cold-roll steel sheet is used as a whole; the steel surface is treated, phosphating and other processes, and then electrostatic powder sprayed with epoxy resin, cured at 220°C high temperature. and the surface is smooth, with a thickness of up to 1.15mm~1.2mm.
2.Controller: Intelligent switch with digital display, multiple controls such as power on, fan, lighting, socket, sterilization, damper, etc..
3.Glass sash: two vertical rising sashes, use explosion-proof 5mm tempered glass, aluminum alloy sash handle. It is designed by the weight balance method in the mechanical principle, and the left and right are connected by synchronous wheels.
4.Lighting: Equipped with LED 30W purification lamp, the luminosity is greater than 300LUX.
5. Fume hood liner liner and Baffle: Use 5mm Compact grade laminate, baffle fixed with PP material.
6. Junction box: The junction box with circuit board and AC contactor makes wiring more convenient.
