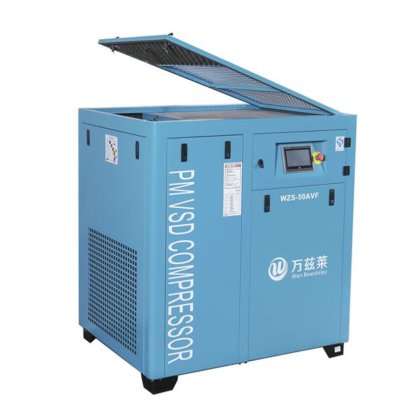

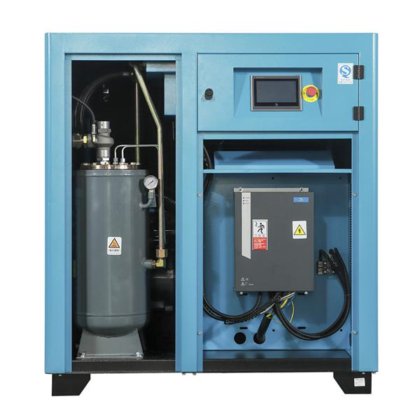

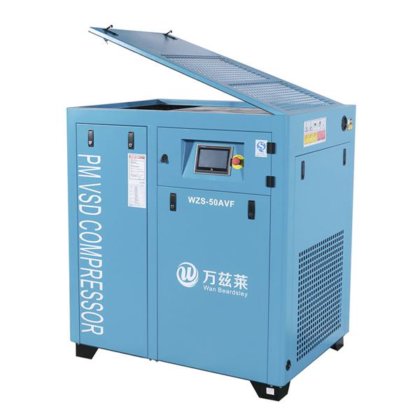

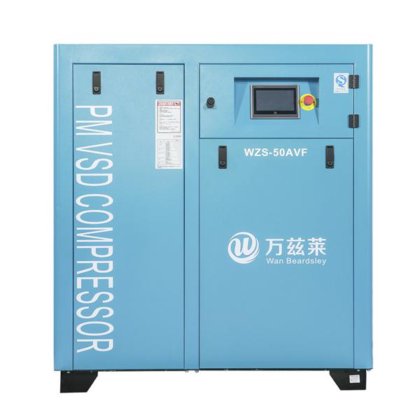

二手 万-比尔兹利油冷永磁 VSD 螺杆式空气压缩机 (AVF) 在 上海市, 中国
二手
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 二手
- 输出功率
- 7.5-75kw
- 空气流动
- 0.8-13.2 米/分钟
- 最大工作压力
- 1.0Mpa
- 绝缘等级 65
- 防尘密封，无灰尘进入，防喷射水，允许有限进入。
- Ip54
- 防尘，允许少量灰尘进入，不影响设备运行。允许少量水进入。
- Ip23
- 可抵御大于 12.5 毫米的固体物体（如手指）。
- 模型
- 功率 (千瓦）；最大压力 (巴）；空气流量 (立方米/分钟）；噪音 分贝（A）；压缩 级；出口直径 (英寸）；尺寸 (毫米）；重量 千克
- L
- W; H
- Wzs-10avf
- 7.5；8.5；1.0；60±2；单；3/4"；1000；600；1000；280
- 10.5
- 11.6
- Wzs-15avf
- 11; 8.5; 1.8; 62±2; Single; 1"; 1300; 860; 1030; 380
- Wzs-20avf
- 15；8.5；2.2；63±2；单；1"；1300；860；1030；480
- Wzs-30avf
- 22；8.5；3.8；66±2；单；1¼"；1380；850；1150；620
- Wzs-40avf
- 30; 8.5; 5.0; 68±2; Single; 1¼"; 1380; 850; 1150; 680
- Wzs-50avf
- 37；8.5；6.2；68±2；单；1½"；1600；1000；1370；850
- Wzs-60avf
- 45；8.5；8.0；68±2；单；1½"；1600；1000；1450；880
- Wzs-75avf
- 55；8.5；9.7；70±2；单；2"；1700；1270；1500；1350
- Wzs-100avf
- 75；8.5；13.2；70±2；单；2"；2150；1300；1700；1950
- 子类别
- 喷油螺杆式空气压缩机
- 子类别 2
- Pm vsd 压缩机
- 产品编号
- 87248115
描述
AVF permanent magnet variable frequency screw compressor can sustain the supply at the pressure of 0.1 bar in any loading conditions. In case of larger demands for air supply, the compressor can increase its rotation speed without changing the compressor can reduce its rotation speed without changing the pressure to meet such demands. In case of no demands for air supply, the compressor will switch to sleep mode to save energy. When actual pressure achieves the wakening standard, the compressor will immediately start up with rapid response of frequency converters even in sleep mode.
1.Reasonable structure and high power density2.Very small rotator inertia and very fast response speed3.Ultrahigh intrinsic coercive rare earth permanent magnetic material with strong anti demagnetizing capacity4.Possible constant torque output within scope of locked rotator and rated rotating speed5.Special asymmetrical magnetic circuit design, making low-rotating-speed torque ripple small6.
