新 NG SIRIO CD 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Models
- NG SIRIO CDNG SIRIO CD HP
- 6913.03.010.1
- 6913.03.011.16913.03.010.26913.03.011.2
- Flow rate (max)
- 20 l/min
- Outlet pressure (max)
- 5.5 bar (80 psi)7.0 bar (100 psi)
- Nitrogen purity (1)
- Up to 99.999%
- Outlet dew-point (2)
- <-60°C (-76°F)
- Outlet particulate
- 0.01 micron
- Rs485
- Standard
- Rs232
- Standard
- Supply rating
- 220-240Vac (±10%) 50/60Hz100-115 Vac (±10%) 50/60Hz
- Connection type
- IEC C20
- Installation power (max)
- 1800VA1900VA
- Max heat value (btu)
- 51005400
- Net weight
- 135 kg
- Dimensions (w x d x h)
- 43.5 x 82 x 68 cm
- Outlet port
- 1/8” female BSPP
- Working temperature
- 5-35°C (41-95°F)
- Storage temperature
- 1-50°C (34-122°F)
- Humidity (max, non condensing)
- 70% [5-35°C (41-95°F)]
- Noise
- < 58 dB(A)
- Ip rating
- IP20
- Pollution degree rating
- 2 (with no aromatic compounds)
- Altitude
- < 2000m
- 产品编号
- 86972913
描述

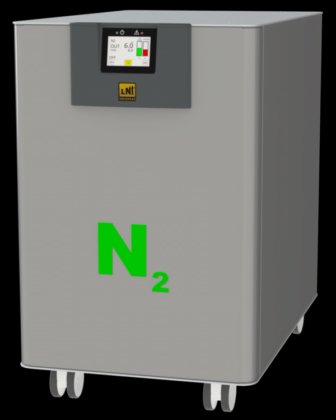

NG SIRIO CD produces laboratory high grade nitrogen for most of the laboratory applications and equipments. Designed with safety and convenience in mind, this system generates purified nitrogen, eliminating the need for inconvenient cumbersome high-pressure gas cylinders.The NG SIRIO removes oxygen from air to less than 1 ppm and HC pollutants to less than 0.1ppm (if the optional scrubber is installed).NG SIRIO is available with two smarts low noise built-in pistons compressors, 100% oil-free.The Ultra Pure Nitrogen is mainly used to feed ICP, ELSD, GC, FTIR and is ideal as nitrogen gas supply for all kind of Laboratory and Chromatography applications.
