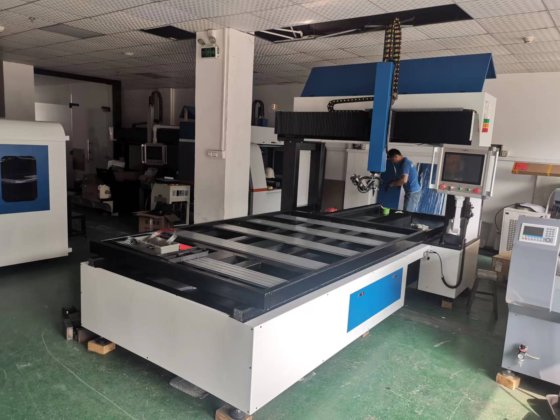

新 5轴非金属激光切割机 在 济南市, 山东省, 中国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
描述
Technical parameter
Machine model
LASER CUTTING MACHINE BRM-5X-1625
Size XYZ
1600*2500*600mm
A axis
185 degree
C axis
185 degree
Laser tube
300w China Reci RF metal tube, 10.6um, 5-5000Hz, 2.2< M2≤2.5, beam diameter below φ20, below 2m red,
Water cooling system
Water chiller
Repeat positioning accuracy
±0.03mm
Maximum speed
12m/min
Cutting speed
8m/min
cutting depth
0.2-4mm
cutting width
0.3mm~0.6mm
water chiller
CW6200
control system
taiwan syntec
servo
taiwan syntec: X 1000w, Y 750w, Z 400w, A: 100w. C: 400w;
transmission
XYZ all ballscrew, gantry fixed, one table moving,
table load
30kgs
voltage
3P380V+single phase 220v 50HZ/60Hz
power consumption
3kw
Overall
Dimension(length*width*height)
5150mm*2280*2200mm
Total weight
2,170kg
Warranty
2 years for whole machine structure(except spare parts), 2 years for laser source and RF metal tube.
Areas of application： With the CO2 laser robot, a wide variety of materials can be
cut and perforated. These include:
• Polyethylene
