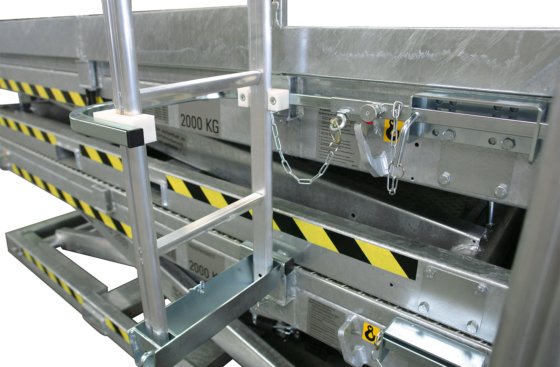

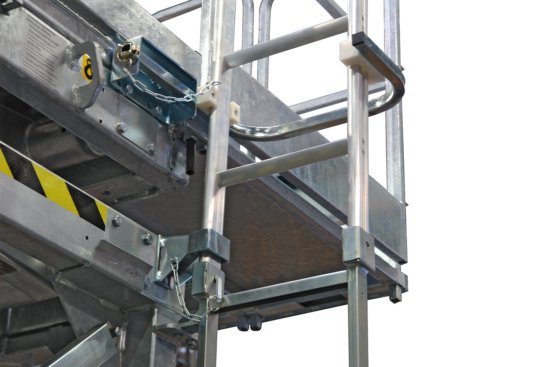

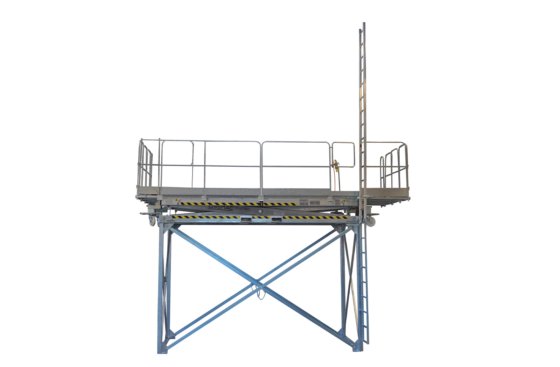

新 MAB 2002 在 巴特武尔察赫, 巴登-符腾堡州, 德国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Length
- 3,0 m
- Length with extendable walkways left/right
- 5 m
- Width
- 1,5 m
- Lifting height
- 0,49 - 1,99 m
- Lifting speed
- 1,5 m/min
- Mass
- 960 kg
- Drive
- electric/hydraulic
- Load capacity
- 2000 kg
- Load capacity extract
- 150kg / per pull-out
- Underframes
- Height max. 2.5 m
- Voltage
- 400V / 16A
- Control
- footswitch
- 分类
- 升降机 在 德国
- 子类别
- Aerial
- 产品编号
- 85371978
描述
Select your country below so we can show you the correct information for your location.
Minimal platform assembly time - simple and efficient
Optimum weight distribution thanks to the fully supported base frame and symmetrically arranged cylinders
Quickly pluggable wheel set optionally available - for easy moving of the platforms - no point loading as wheel set is attached at the top
Consistent load capacity over the entire lifting height
Central electrical control box for additional connection of further platforms

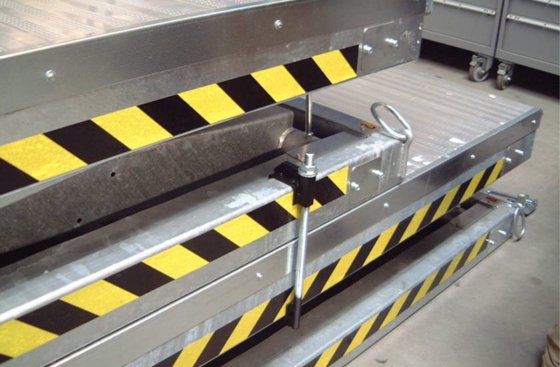

Optimum adaptation to construction site conditions thanks to extensions and pull-outs

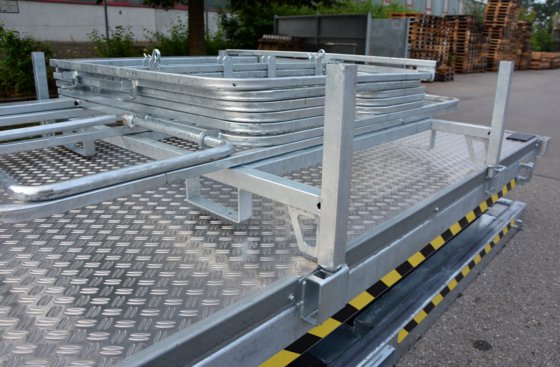

Non-slip tear plate covering for a secure grip
Double-acting hydraulic cylinders with safety valve (hydraulic relief during transportation)
Railings can be easily transported using a railing frame
Manual control unit or foot switch possible
