新 测量系统 GrindControl 在 哈恩, 北莱茵－威斯特法伦, 德国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- 应用
- pressure and temperature measuring for Planetary Ball Mills, Emax and Mixer Mills MM 500 nano/control
- 应用领域
- material synthesis, 农业, 化学 / 合成材料, 医药品, 地质 / 冶金, 工程/电子, 建筑原料, 环境 / 资源回收利用, 玻璃/ 陶瓷, 生物, 食物
- 测量范围 压力
- gas pressure: 0 - 500 kPa (5 bar)temperature: -20°C - +100 °C
- 粉碎腔容积
- 125 ml (MM); 50 ml & 500 ml (PM)
- 干磨
- 是
- 湿磨
- 是
- 低温研磨
- yes min. -20 °C
- 研磨罐种类
- Screw-Lock (MM) and EasyFit jars (PM)
- 研磨套件材料：
- hardened stainless steel, 氧化锆
- 研磨罐尺寸
- 125 ml (MM); 50 -500 ml (PM)
- Transmission frequency
- 5 /s
- 电源数据：
- battery (up to 90 h operation time)
- 附件：

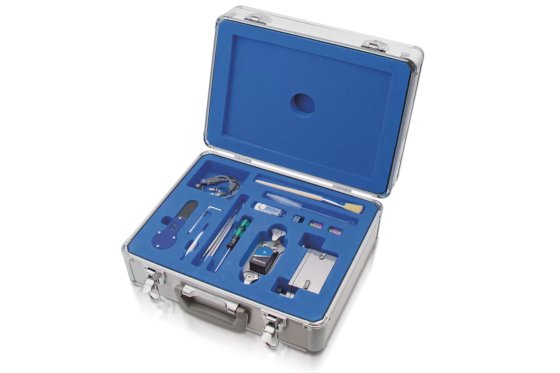

- opening aid, cleaning tools, o-ring, PC-software (PC not included), filter, (lid insert not included)
- 净重
- lid with sensor unit 360 g (MM)1780 g / 1140 g(PM)
- 标准
- CE
- Technical requirements
- PC with Windows 11 and Bluetooth 5.0 or higher
- Software
- live monitoring of measurement data, full measurement protocol, storable templates, list of performed measurements, data export in .pdf and .csv
- 分类
- 球磨機 在 德国
- 子类别
- 粉碎
- 子类别 2
- 球磨仪
- 子类别 3
- 粉碎设备
- 产品编号
- 85167443
描述

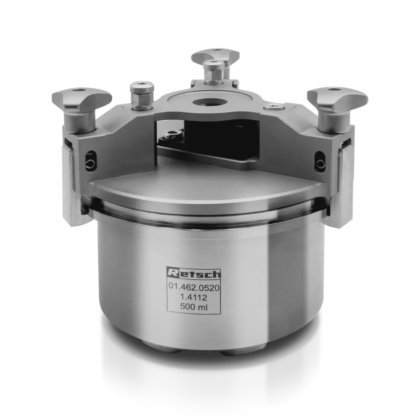

Achieve optimal ball milling processes with GrindControl
The GrindControl system continuously measures and records the pressure and temperature inside the grinding jar. This gives users clear insight into the milling process and ensures reliable, reproducible conditions. By monitoring these key variables, sample preparation becomes more efficient, temperature sensitive materials are protected, and stable conditions for colloidal or long term grinding are maintained.
GrindControl also supports demanding applications such as mechanical alloying and mechanochemical synthesis by enabling precise process control.

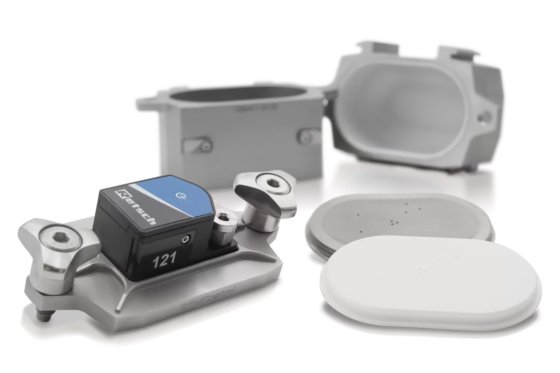

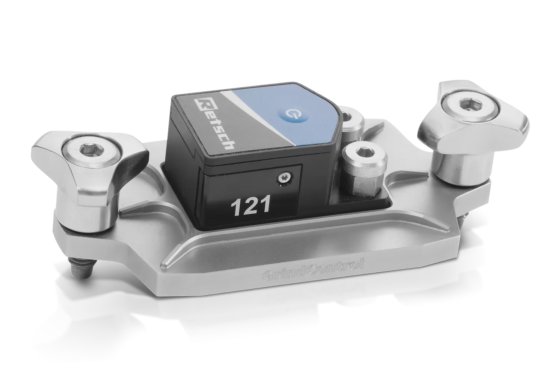

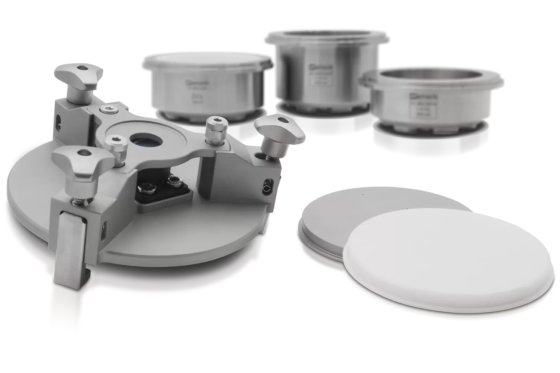

GrindControl is available for the Mixer Mills MM 500 nano/control, the High Energy Ball Mill Emax, and planetary ball mills. It consists of a hardware measurement unit and analysis software.
磨削控制一览
精确温度监测范围为-20°C至+100°C，分辨精度达0.1°C。
Accurate internal jar pressure measurement from 0 to 5 bar with 1 mbar resolution.
