新 带 12 个工位的数控转塔冲床 在 南京市, 江苏省, 中国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- 0.规格
- ZH-0825; ZH-1025; ZH-0850; ZH-1050
- 1. 机器压力 (kn)
- 300 千牛（30 吨）
- 2. 机器冲孔直径（毫米）
- 50.8 (选项：88.9)
- 3. 最大工件厚度（毫米）
- 6.35
- 4. 精冲（毫米）
- +/- 0.1
- 5. 重复性（毫米）
- +/- 0.05
- 6. 打孔频率（印章/分钟）
- 200
- 7. 加工尺寸（毫米）
- 1,250×2,500; 1,250×5,000
- 8. 更换工具（套）
- 12; 12; 12; 12
- 9. 数量夹钳（套）/轴（套）
- 2 / 2
- 尺寸（毫米）
- 4,850x3300x2,100; 4,850×5,300×2,100
- 11. 重量（公斤）
- 8,000; 9,000
- 分类
- 冲床 在 中国
- 子类别
- 按压和打孔
- 子类别 2
- 数控转塔冲床
- 产品编号
- 83651149
描述

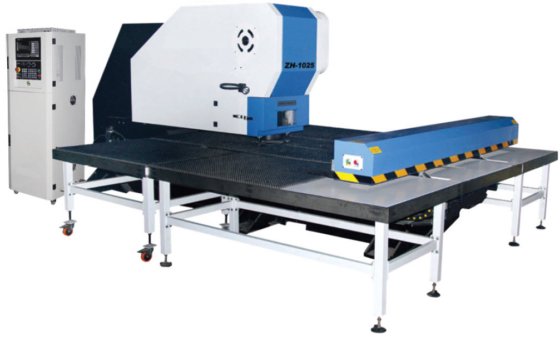

CNC turret punching machine 12 station machine used to punch inlet/outlet water hole of electric water heater. And also used to punch flanges holes and many other holes need on electric water heater.
There are 10 (8 or 12 optional ) station in this machine and the DIE can be changed easily.
5.Punchhousing: Adopt strengthened rib plate (80mm), strong housing, not easy to bedeformed.
6.CNC Feeding machine housing: feeding part whole set has been drawing temper treated at fireplace; internal stress has been eliminated completely. Housing adopts widened lever double rail design, more stable.
7.Clutch: Pneumatic rubbing clutch, adopting safe double values control,

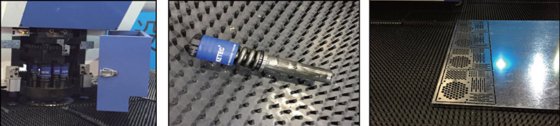

8.Turret/Die: Adopt international common die. Die setup height 660mm, AMADA thick turret long guiding construction. Die material is Japan High-speed tool steel SKH-9. The dies supplied are compatible with AMADA AE255NT and AE2510NT machines.
9.
