Product Description

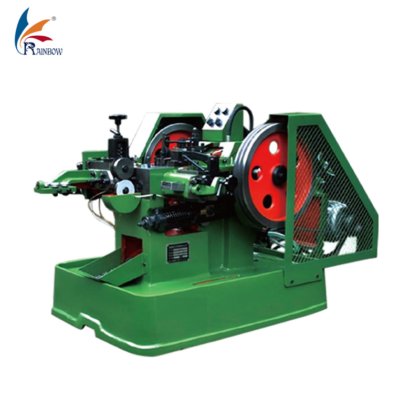

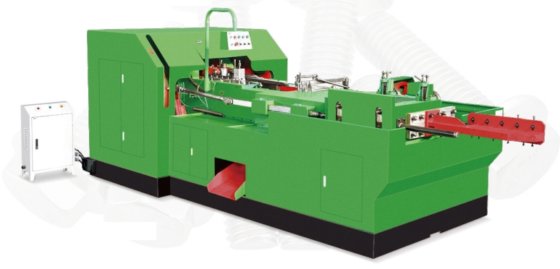

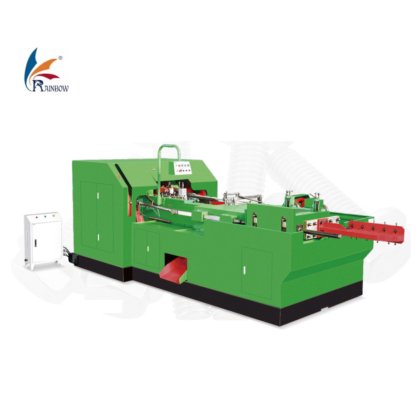

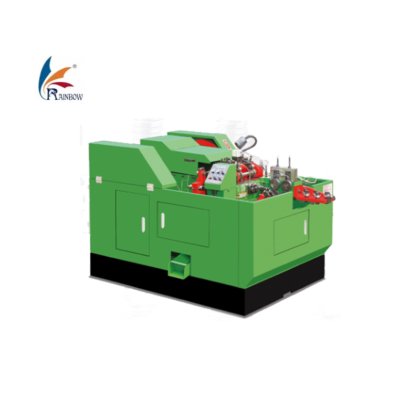

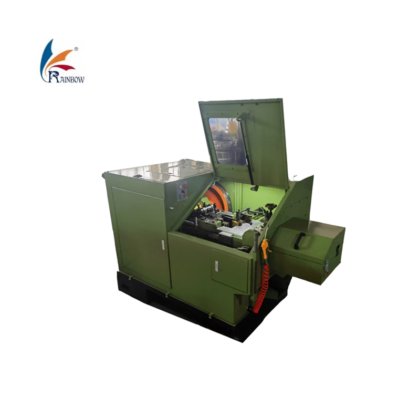

The heading machine adopts cold heading way to make the screw heads by double-click the whole mould form. Our screw heading machine can finish the Feeding, straightening, cutting material, forming, discharging by one die two blow heading machine automatically.
Product Parameters
Model
RSH 5-60
RSH 5-80
RSH 5-100
Max.cut off dia
5mm
5mm
5mm
Max.cut-off length
60mm
80mm
100mm
Main slide Stroke
80mm
95mm
120mm
Outpout
120-140pcs/min
90-110pcs/min
80-100pcs/min
Die dia
34.5mm
35mm
40mm
Cut off die dia
19mm
19mm
20mm
Punch die (1st)
31mm
31mm
31mm
Punch die (2nd)
31mm
31mm
31mm
Main motor power
3kw
3kw
3kw
LxWxH(m)
2.3x1.08x1.15
2.4x1.15x1.25
2.5x1.15x1.35
Net weight
1700kg
