新 低碳钢拉丝机 在 黑龙江省, 中国

4. The biggest reducing: 200 s standard of high carbon steel
5. The largest storage line: 2.5 T
6. Compaction method: three groups of six rounds of hydraulic clamping
7.Drum diameter: 1200mm
8.Motor: 55KW

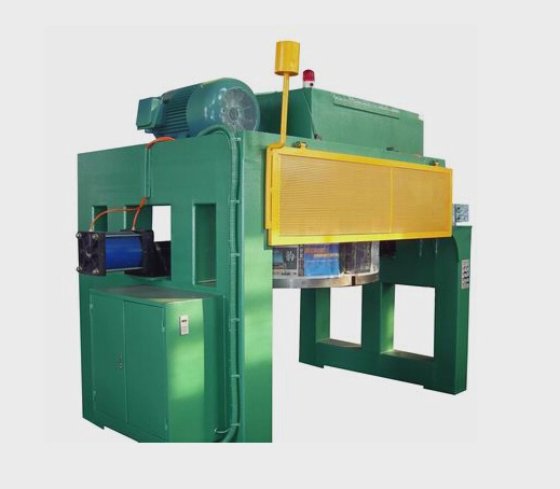

DL36 inverted wire drawing machine parameters and configuration
1. The main motor: 75 kw - 6 p speed regulation of frequency conversion motor
2. The frequency converter: 75 kw (vector control)
3. The drum: 1400 mm diameter, material: chilled cast iron, the surface hardness HRC55 - HRC56
4. Level 3 speed reducer: V14 type four axis (hard tooth face)
Take-up wire :
1. Take-up motor: 2.2 kw - 6 p general motors
2. Type inverter: 2.2 kw (vector control)
3. The reducer: WPO135 type
4. The discharging machine: 1.5 kw - 6 p
Hydraulic clamping device:
1. Hydraulic cylinder: 100 * 180 three groups
2.
