Rolling guide device in high speed wire rod production line

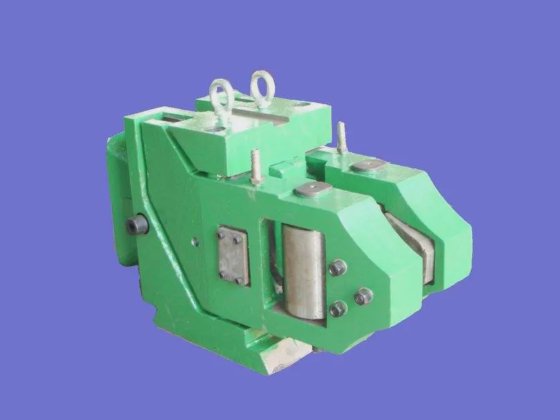

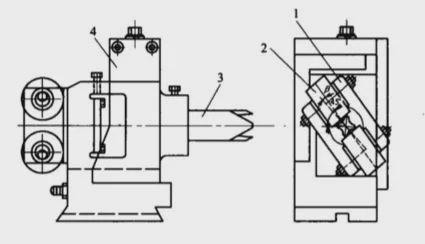

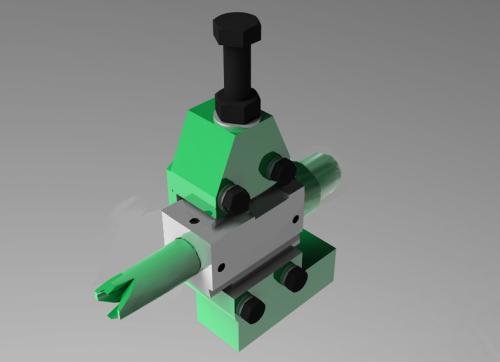

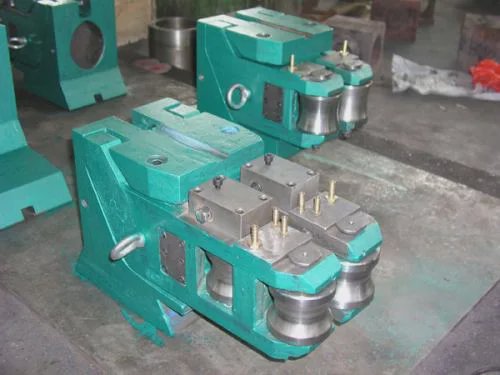

The rolling guide assembly generally consists of the guide box body, the guide plate, the support arm and its adjusting device, the middle axis and its adjusting device, the guide roller, the guide roller bearing, the guide roller shaft, the bushing, the oil distribution ring and the dust cover. More than 20 components, such as the guard tip, oil and gas lubrication system and water cooling system, are assembled.
The main process parameters of the guide roller are: the hole radius R of the guide roller and the hole depth D, as shown in Fig. The guide roller hole type of Angang high-speed rolling mill adopts the same curved design. When the rolling stock is running, the surface contact is clamped. The contact area between the guide roller and the rolled piece is about 80% -90% .
Before sale: design the suitable machine based on the specific demands
