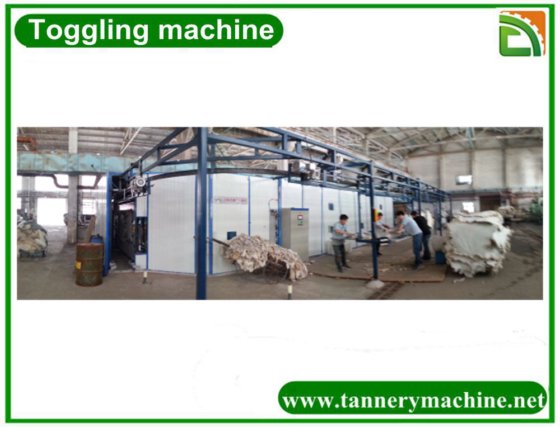

新 Rotary toggling machine 在 江苏省, 中国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Hits
- 12466
- No
- REQUEST
- 1
- All air parts
- 2
- Electric valve
- 3
- Limited switch
- 4
- Travel switch
- 5
- Motor
- 6
- contactor
- 7
- Operate Tool
- 8
- Size of hollow tube expansion unit(inner)
- 9
- Thickness of hollow tuber expansion unit(inner)
- 10
- Steel perforated plate thickness
- 11
- No of gear motor for track of roller frame automatic 1n/out
- 13
- Stretching adjustment
- 14
- Dry time
- 15
- Size of square tuber tubular structure
- 16
- Size of main outside structure
- 17
- No of circulating fans(blow fan)
- 18
- Dia of blow fan
- 19
- Blade material of blow fan
- 20
- No of heat exchanger
- 21
- Size of heat exchanger
- 22
- Size of heat exchanger steel tuber
- 23
- Thickness of the steel tuber of heat exchanger
- 24
- Electric motor rating of blow fans
- 25
- No,of drying pipe
- 28
- Type of exhaust blower
- 30
- Power of motor
- 31
- No of temperature control zone
- 32
- Type of sliding wheel
- 33
- Material of sliding wheel
- 34
- Size and thickness of insulation board
- 35
- Type of insulation
- Item
- Name
- · install working area
- Length 10180mm & Width 11800mm&height 4200mm
- · stretching adjustment
- 0-120mm
- · drying temperature
- 20-70 °C
- · motors
- foreigner international brand
- · electronic control parts
- famous brand
- · contactor
- SCHNEIDER
- · limited switch
- foreigner international brand
- · travel switch
- foreigner international brand
- · air cylinder
- foreigner international brand
- · plc
- foreigner international brand
- 子类别
- Machinery
- 产品编号
- 80097565
描述
Rotary toggling machine (3000x3000mm plate detail )
NO
REQUEST
ANSWER
REMARK
1
NO. of toggling frames
100 frames
One toggling frame made with two pcs steel board
2
Size of toggling plate
3500x3000mm
3
Dimension of toggle frames
3600x3540mm
4
Electric power
13.5kw
5
Thickness of galvanization
13micron
6
Size of hollow tube of toggle frame(outer)
Φ60.Φ48 40x40mm
high quality
7
Thickness of hollow tube of frame(outer)
3.5mm and 3mm
High quality
8
Size of hollow tube expansion unit(inner)
50x50 60x80mm
High quality
9
Thickness of hollow tuber expansion unit(inner)
3-3.5mm
High quality
10
Steel perforated plate thickness
2mm
Cold-rolled sheet galvanic
11
No of gear motor for track of roller frame automatic 1n/out
2sets
13
Stretching adjustment
0-120mm
14
Dry time
3hours
After sammying and setting out
15
Size of square tuber tubular structure
50x50mm
16
Size of main outside structure
