新 Conveyor 在 江苏省, 中国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Hits
- 5261
- · length for air line
- 386m
- · hooking hangers size
- 1800mm
- · hooking hangers mode
- three hangers each one unit
- · hangers number
- 950pcs
- · leather number
- 3800pcs
- · clip number
- 11400pcs(each hanger 4pcs clip ,each unit 3 hangers)
- · speed of conveyor
- 0-7m/min（adjustable speed）
- · distance each hanger
- 406mm
- · bearing number
- 7720pcs
- · power
- 3 phase 380v,50Hz
- · controller
- one sets
- · conveyor motor
- two sets (same step control)
- · track
- thickness 2.75mm iron ,surface casting zinc
- · hangers
- D25mm, surface spraying the plastic powder ,head covered
- · clip
- Nylon (one wheel)
- · chain
- thickness 4mm ,45#,hardening and tempering
- · bearing
- thickness 20x20mm
- · motor
- 6 Grade 3 kw
- · energy request
- about 12000kcal(up to 90 degree)
- · straight trace
- with hole
- · bend
- with hole
- · dry chamber length
- 30,000mm
- · heated board thickness
- 50mm
- · iron size
- 50x50x200mm
- · dry chamber size
- width 2100mm,height 2800mm
- · blow fan number
- 30pcs or 15pcs(up to confirm)
- · blow fan power
- 0.75kw
- · windy leaf
- casting aluminum
- · radiator number
- 30pcs or 15pcs (up to confirm)
- · radiator outsize
- 900x700mm
- · radiator pipe length
- 15,400mm/one pc
- · de-humidity
- one set (fix in the middle of chamber,de-humidity fan)
- · temperate control
- 60-80 degree
- · blow fan control
- each unit 15pcs
- · radiator energy input
- each input pipe for three pcs radiator
- · energy
- thermal oil or electrical
- · distance from chamber to wall support
- 2000mm
- 分类
- 输送机 在 中国
- 子类别
- Machinery
- 产品编号
- 80097557
描述

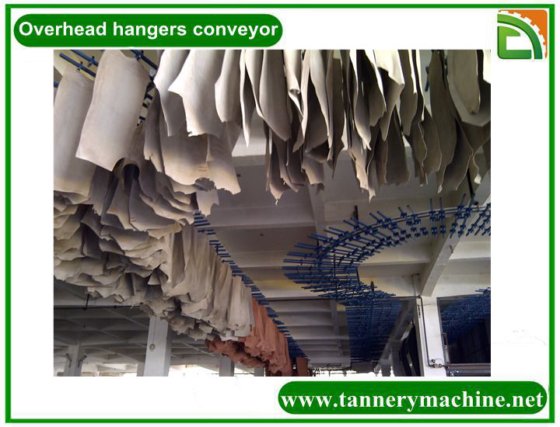

Over head chain conveyor (TIRUBALA GROUP )
· Length for air line : 386m
· Hooking hangers size : 1800mm
· Hooking hangers mode : three hangers each one unit
· Hangers number : 950pcs
· Leather number : 3800pcs
· Clip number : 11400pcs(each hanger 4pcs clip ,each unit 3 hangers)
· Speed of conveyor : 0-7m/min（adjustable speed）
· Weight of loading each point 30kg/point
· Distance each hanger : 406mm
· Distance from hanger’s top to hanger 150mm
· Bearing number : 7720pcs
· Power : 3 phase 380v,50Hz
· Controller : one sets
· Conveyor motor : two sets (same step control)
Detail of conveyor
· Track : thickness 2.75mm iron ,surface casting zinc
· Hangers : D25mm, surface spraying the plastic powder ,head covered
· Clip : Nylon (one wheel)
