新 LMK GA 在 巴特武尔察赫, 巴登-符腾堡州, 德国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Load capacity
- 400 kg
- Hook height
- 5000 mm
- Ballast
- 4 x 365 kg
- Wheel base
- 2130 mm / 2130 mm
- Turning radius
- 360°
- Lifting speed
- 2.0 / 8.0 m/min
- Telescopic tower
- Yes
- Driving drive
- Yes
- Assembly and dismantling
- electrohydr.
- Voltage
- 400 V
- Transport dimensions (l/w/h)
- 2400/2400/2350 mm
- Dead weight with ballast
- 2780 kg
- Dead weight without ballast
- 1310 kg
- 分类
- 起重机 在 德国
- 子类别
- Mini cranes
- 产品编号
- 77556393
描述
Select your country below so we can show you the correct information for your location.
Especially for building on gaps between buildings and for construction sites in city centers
Work possible in very confined spaces

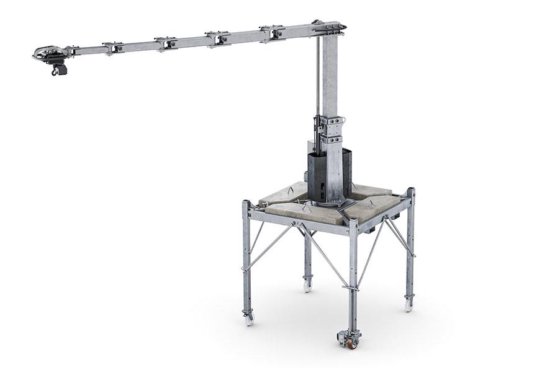

5 articulated elements
Boom can be extended to a full 5m
400kg load capacity over the entire outreach
Solidly mounted connection points of the articulated arm ensure smooth operation and durability
Travel drive for easy working
Radio control as standard
Large-dimensioned ball bearing slewing ring
Easy assembly and disassembly thanks to electro-hydraulic pump
Quick disassembly of the chain hoist possible
Maintenance-friendly due to easy accessibility
Compact dimensions
