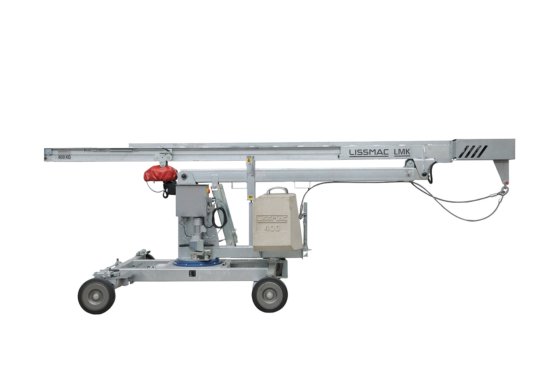

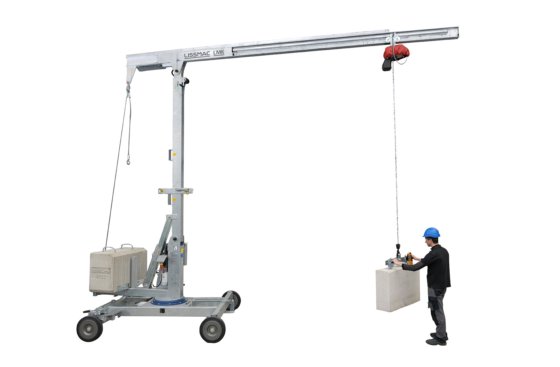

新 LMK 400 TFE 在 巴特武尔察赫, 巴登-符腾堡州, 德国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Load capacity 5 m boom
- 400 kg
- Discharge
- 5000 mm
- Hook height
- 4500-6000 mm
- Weight without ballast
- 991 kg
- Ballast
- 1070 kg
- Wheel base
- 2000/2000 mm
- Turning radius
- 1500 mm
- Wheel pressure max.
- 14 kN
- Lifting speed
- 2-8 m/min
- Telescopic tower (t)
- Yes
- Traction drive (f)
- Yes
- Assembly and dismantling (e)
- electrohydr.
- Tower slewing drive (d)
- No
- Trolley drive (k)
- No
- Voltage
- 400 V / 50 Hz
- Transport dimensions (l/w/h)
- 6100/2100/2000
- 分类
- 起重机 在 德国
- 子类别
- Mini cranes
- 产品编号
- 77556382
描述
Select your country below so we can show you the correct information for your location.
Base frame, tower and jib completely hot-dip galvanized- No rust or paint damage- Durable and robust for the toughest applications
Large-dimensioned ball bearing slewing ring, smooth rotation
Easy assembly and disassembly with an electro-hydraulic pump - Additional protection with a safety cylinder with locking pin
LMK 400 TFE/DK available including HBC radio remote control
Radio control can be converted to EHS (chain hoist and trolley function can be used)
Two mini cranes can be accommodated on 7 loading meters by inclining the boom
Can be moved horizontally by forklift and crane
Power supply integrated in the boom via a cable towing device
Quick disassembly of the chain hoist possible
