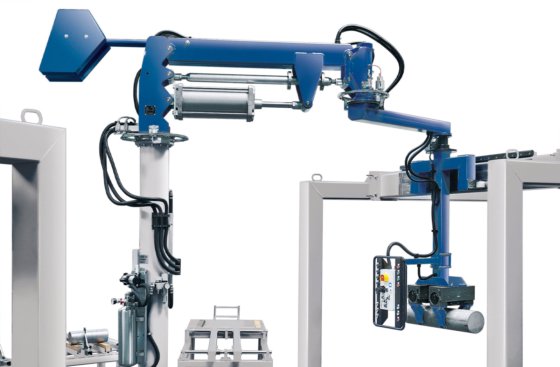

新 PB 250 在 巴特武尔察赫, 巴登-符腾堡州, 德国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Load capacity without lam, without counterweight
- 250 kg
- Load capacity without lam, with counterweight
- 375 kg
- Lifting height
- 1650 mm
- Standard work area
- 5650 mm
- Working range up to max.
- 6400 mm
- Projection standard
- 2825 mm
- Projection up to max.
- 3200 mm
- Lifting arm length
- 1825 mm
- Height device without column
- 900 mm
- Installation height ok hub device on column
- 3800 mm
- Column height
- 2000 mm
- Rotation range main axis lifting arm
- Endless
- Rotation range axle articulated arm
- 300 °
- Swivel range swivel joint
- 320 °
- Projection counterweight
- 960 mm
- Max. moments axis
- 2.000 Nm
- Drive
- pneumatic
- Lifting speed
- 0-20 m/min.
- Working pressure min.
- 6 bar
- Air consumption / stroke max.
- 138 NL
- Sound level
- 78 db (A)
- Ambient temperature
- -15 / + 70 °C
- Dead weight without counterweight and column
- 500 kg
- Counterweight
- 350 kg
- 子类别
- Products
- 产品编号
- 77556216
描述
Select your country below so we can show you the correct information for your location.
maximum productivity and reliability
ergonomic, efficient working without effort
Precise and exact positioning of components
weightless, pendulum-free handling thanks to automatic weight compensation
individual gripper systems
easy to operate
Optional load guidance directly on the gripped item
optional lifting/lowering function for absolutely load-free lifting and lowering
High safety standard
Vertical, suspended or mobile design
Extensive range of accessories for optimum configuration
Switchable overrun protection on the rotary axes 1 and 2
