新 DTS 420 N 在 巴特武尔察赫, 巴登-符腾堡州, 德国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Cutting depth standard / max.
- 370/420 mm
- Section length
- 650 mm

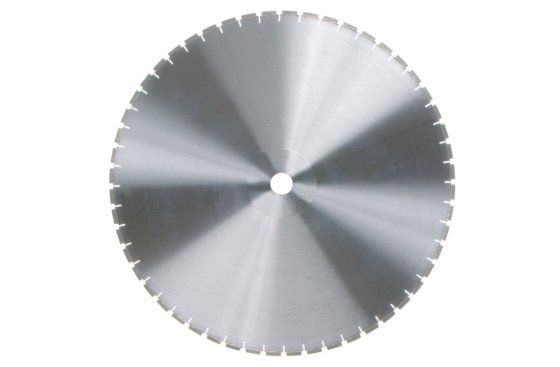

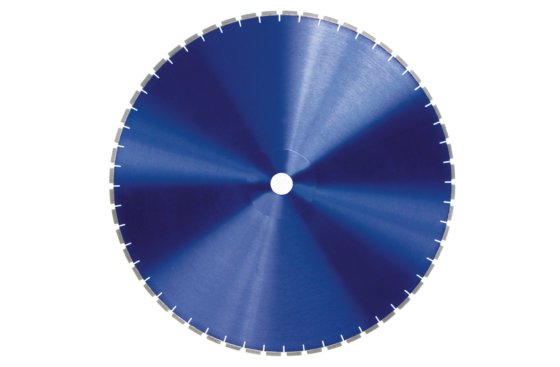

- Saw blade dia. standard / max.
- 900/1000 mm
- Saw blade holder
- 60 mm
- Engine power
- 7.5 kW / 400 V
- Saw blade speed
- 910 1/min
- Protection type
- IP 55
- Feed
- handwheel

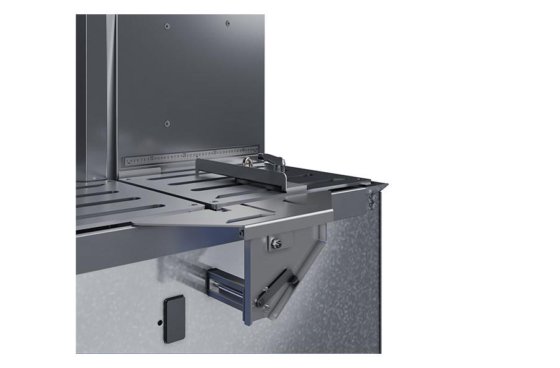

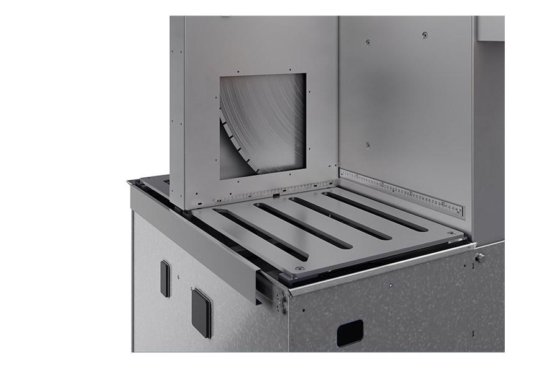

- Saw table width
- 825 mm
- Dimensions (l/w/h)
- 1260/950/2000 mm
- Mass
- 364 kg
- 分类
- 石材 在 德国
- 产品编号
- 77556137
描述
Select your country below so we can show you the correct information for your location.
The central arrangement of the operating elements allows the user to process the material to be cut from one position
The protective cover integrated in the saw hood, which lowers with the saw blade over the stone to be cut, offers optimum accident protection.
Powerful saw blade drive via high-performance chain in a fully enclosed and low-maintenance gearbox
No time-consuming retensioning of the V-belts
Central crane suspension, tail wheel for moving, high maneuverability
Pump can be removed without tools with a single movement
Quick saw blade change
Precise positioning of the cutting material via a viewing window
The saw head's own weight supports the vertical sawing movement
Notching cuts can be made quickly and easily without time-consuming conversion work (e.g. height adjustment of the saw head)
Large formats can be processed upright, without tilting movement
