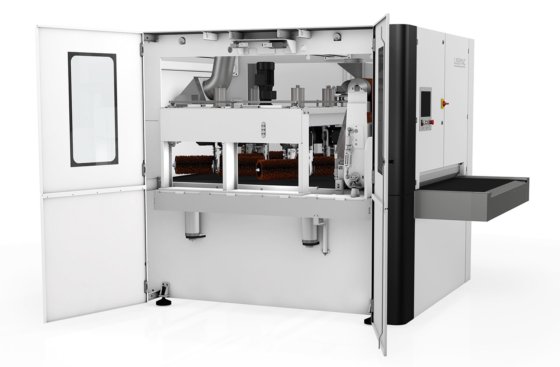

新 SMD 3 S - EDITION 在 巴特武尔察赫, 巴登-符腾堡州, 德国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Passage width
- 1350 mm
- Machinable material thickness
- 1.0 - 120 mm
- Payload
- 500 kg/lfm
- Voltage
- 400 V / 50 Hz
- Net shape
- 3 + PE / 3 + PEN
- Nominal current
- 86,2 A
- Rated capacity
- 41,9 kW
- Protection type
- IP 42
- Feed stepless
- 0.3 - 8.0 m/min
- Weight approx.
- 5800 kg
- Dimensions (w/t/h) approx.
- 2170/3800/2260 mm
- 子类别
- Applications
- 产品编号
- 77556081
描述
Select your country below so we can show you the correct information for your location.
Suitable for processing different materials such as steel, stainless steel and aluminum
Simultaneous processing of different material thicknesses possible (E-aggregates)
Individually adjustable processing parameters for optimum results

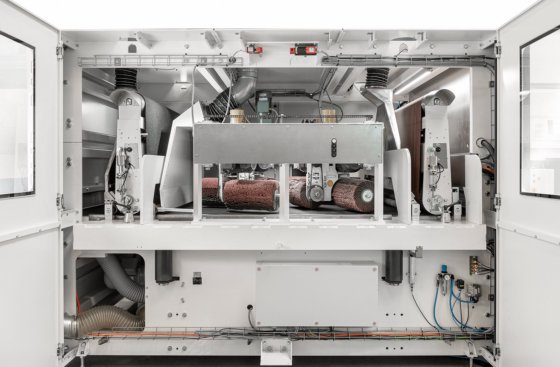

The sophisticated tool arrangement ensures a uniform processing result across the entire working width
Maximum tool contact with the components for perfect edge rounding up to a radius of 2 mm
Efficient processing of small parts (from 50x50 mm) regardless of the part geometry

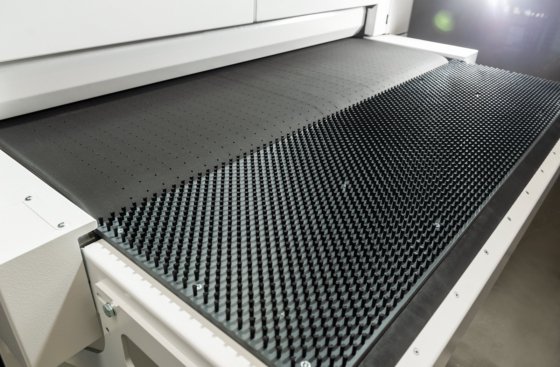

Fixed machine table - constant table height for ergonomic working

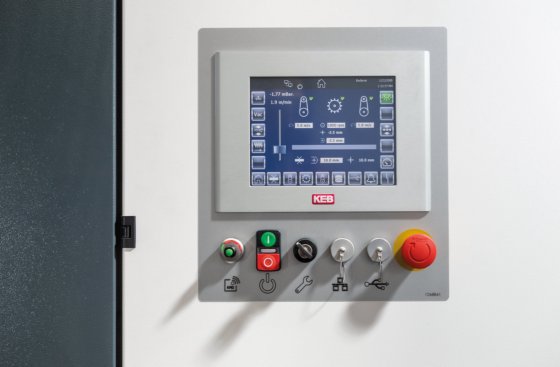

Intuitive operation thanks to clear touch panel
Flexibility and energy-efficient operation thanks to processing units that can be switched on and off separately
Fast machine set-up thanks to automatic positioning of the tool axes
