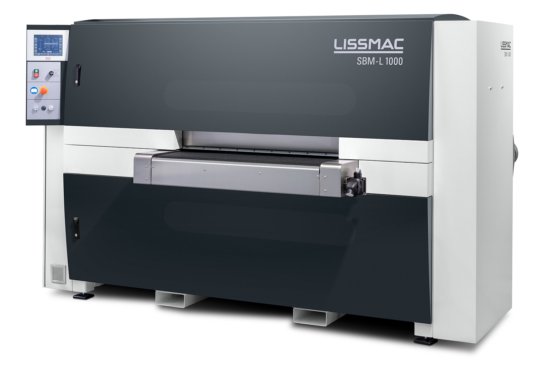

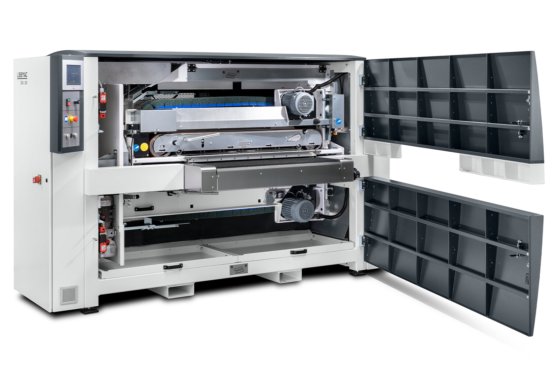

新 SBM-L G1S2 在 巴特武尔察赫, 巴登-符腾堡州, 德国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Passage width max.
- 1000 / 1500 / 2000 mm
- Machinable sheet thickness
- 0.5 - 50 mm
- Payload
- 300 kg/lfm
- Voltage
- 400 V / 50 Hz
- Net shape
- 3~ PEN / 3~ PE+N
- Nominal current
- 43.7 A / 43.7 A / 43.7 A
- Rated capacity
- 20.4 kW / 20.4 kW / 20.4 kW
- Protection type
- IP 42
- Feed stepless
- 0-4 m/min.
- Setting sheet thickness
- electrical
- Setting tools
- electrical
- Weight approx.
- 2500 / 2800 /3200 kg
- Dimensions (w/t/h) approx.
- 2800/1500/1800 mm3300/1500/1800 mm4000/1500/1800 mm
- 子类别
- Applications
- 产品编号
- 77556073
描述
Select your country below so we can show you the correct information for your location.

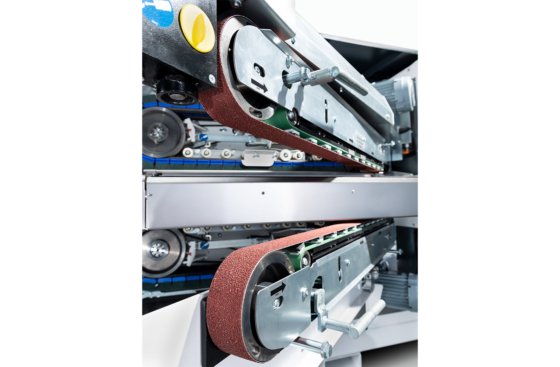

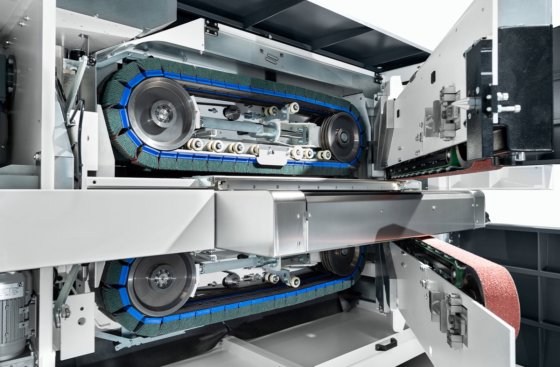

Deburring and edge rounding of workpieces up to 50 mm sheet thickness
Removal of splashes on the sheet metal surface
Deburring on both sides of the workpieces saves cost-intensive turning of the often very heavy workpieces or processing the parts twice
Simultaneous deburring and edge rounding of the inner and outer contours
Dry processing
Simple, intuitive operation (Siemens 7)
The processing units are individually electrically adjustable or can be switched on and off
Maximum productivity with consistent processing quality
The transverse machining principle ensures optimum tool utilization across the entire working width
Quick and easy tool change within a few minutes
Modular, compact construction in a modern machine design - low space requirement
Improved working environment - reduction of dust, dirt and noise pollution
