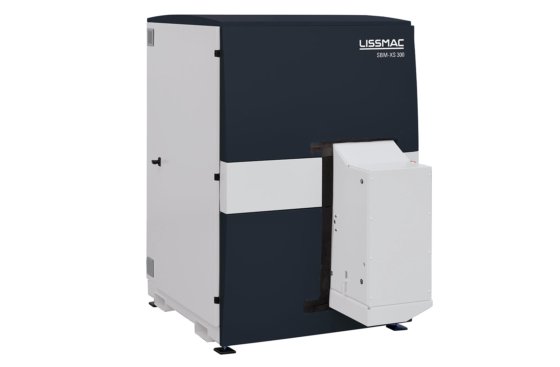

新 SBM-XS G1E1 在 巴特武尔察赫, 巴登-符腾堡州, 德国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Working width
- 300 mm
- Machinable material thickness
- 1 - 15 mm
- Voltage
- 400 V / 50 Hz
- Net shape
- 3~ PEN / 3~ PE+N
- Nominal current
- 24 A
- Rated capacity
- 14 kW
- Protection type
- IP 42
- Feed speed
- 0 - 2 m/min.
- Setting sheet thickness
- electrical
- Setting tools
- electrical
- Mass
- about 1450 kg
- Dimensions (w / d / h)
- approx. 1300/2300/1900 mm
- Machinable materials
- Steel/stainless steel/aluminum
- 子类别
- Applications
- 产品编号
- 77556061
描述
Select your country below so we can show you the correct information for your location.
No more time-consuming turning and reprocessing of parts
By folding away the innovative turning station, parts with an edge length of more than 200 mm can also be processed on one side
High degree of automation enables economical and reliable processing, even of large quantities of parts
High and consistent processing quality
Dry processing (no chemical additives required, e.g. for vibratory grinding)

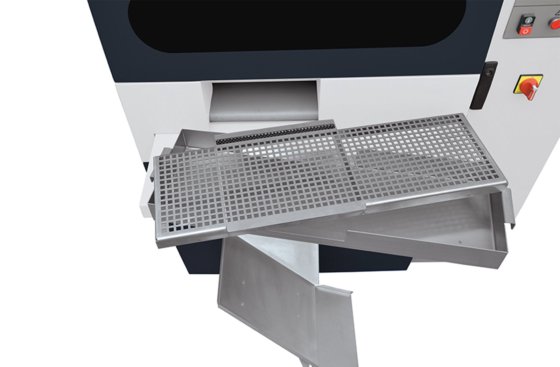

Small parts are transported out of the machine on the loading side and collected in a collection box, eliminating additional walking distances for the operator
Energy efficient
The machining principle ensures even tool wear across the entire working width

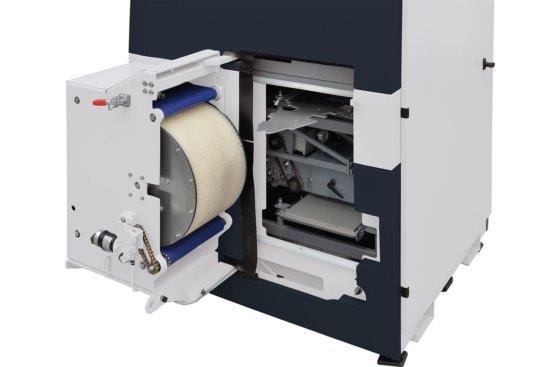

Quick and easy tool change

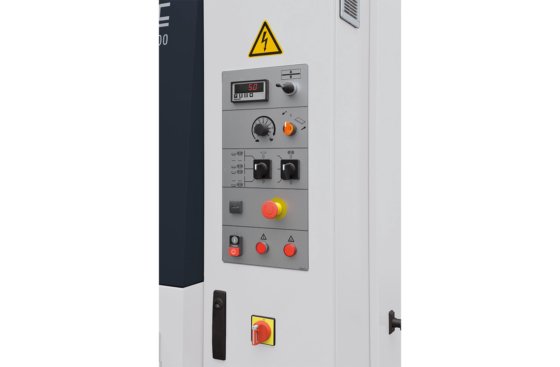

Simple and intuitive machine operation
Modern, compact machine design
