新 UNICUT 610 在 巴特武尔察赫, 巴登-符腾堡州, 德国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Cutting depth max.
- 630 mm
- Cutting depth adjustment
- Hydraulic cylinder infinitely variable
- Saw blade dia. max.
- 1500 mm
- Saw blade holder
- 35 mm (6 x M12 - TK120)
- Drive motor
- Perkins 100 kW turbodiesel EU
- Max. output power
- 100 kW/136 hp
- Emission level
- Stage V / US EPA Tier 4 Final#
- Forward cut
- hydraulic stepless 0-50 m/min
- Cutting backwards
- hydraulic stepless 0-50 m/min
- Saw blade speed
- 600-2800 1/min
- Left/right cut
- Yes
- Dimensions (l/w/h)
- 2350/1600/2100 mm
- Mass
- 2200 kg
- 产品编号
- 77555951
描述
Select your country below so we can show you the correct information for your location.

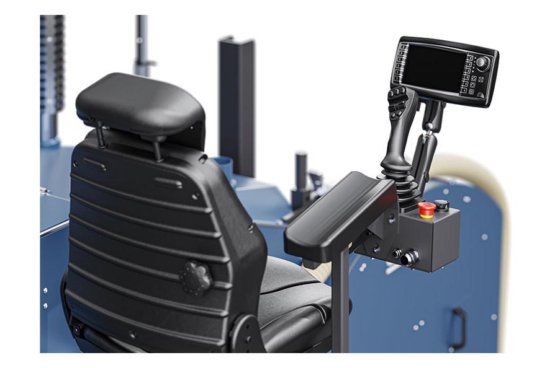

Extremely simple operation thanks to the multifunctional joystick
Optimized hydraulic circuit thanks to electro-hydraulic steering, resulting in higher power transmission to the saw blade
Drive and saw blade speed are electro-hydraulically adjustable - optimum cutting speed of the saw blade
The optional all-wheel drive distributes the power optimally to the 4 wheels and ensures propulsion. When cornering, the all-wheel drive switches off automatically based on the steering angle.
Shortened wheelbase - smaller turning circle
Optimum weight distribution - low center of gravity
Large fuel tank reduces work interruptions
Quick conversion from left-hand to right-hand cutting - 180 degree swivel capability
Large, non-marking drive wheels
Saw blade guard is infinitely hydraulically height-adjustable independently of the saw motor
Slider box can be moved outwards by 100 or 200 mm
