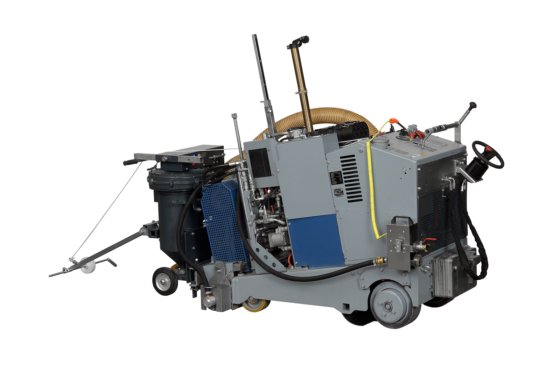

新 MULTICUT 905 在 巴特武尔察赫, 巴登-符腾堡州, 德国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Cutting depth max.
- 515 mm
- Cutting depth adjustment
- electro-hydraulic, stepless with depth display
- Saw blade dia. max.
- 1200 mm
- Saw blade holder
- 35 mm (6xM12 - TK 120 mm) - 25.4 mm optional
- Drive motor
- HATZ Diesel 4-cylinder
- Max. output power
- 55 kW / 74.8 hp
- Emission level
- Stage 5 (incl. diesel particulate filter)
- Forward drive
- Hydrostat infinitely variable 0-50 m/min
- Reverse drive
- Hydrostat infinitely variable 0-25 m/min
- Saw blade speed
- 950 / 1620 / 2450 1/min
- Left/right cut
- Yes
- Dimensions (l/w/h)
- 2290/1030/1720 mm
- Weight 905 sg
- 1130 kg
- Weight 905 sgh
- 1200 kg
- 产品编号
- 77555947
描述
Select your country below so we can show you the correct information for your location.
Torsion-resistant frame structure with low center of gravity
High track stability thanks to consistently long wheelbase
Thanks to the smooth-running axle steering, the floor saw can be moved and set up quickly and easily without physical strain. Cutting corrections can also be carried out without effort
Smooth-running, water-cooled HATZ 4-cylinder turbo diesel engine with the latest emissions standard
Easy switching of the saw blade speed thanks to the 3-stage manual gearbox
Large V-belt drive
The large saw blade shaft bearing with special seal guarantees a long service life
The air intake is on the operator's side, which means that only clean, cool fresh air is drawn in.
Sensitive feed due to hydrostat and maintenance-free gearbox (without chain)
Feed lever with one-hand operation and lowering/lifting switch on both sides
